What Role Does Cold Forming Play in Z Section Steel Manufacturing?

Z section steel is the workhorse of modern steel-framed buildings. It is used as purlins, girts, and roof rails, spanning between structural frames and supporting the roof and wall cladding. The Z shape allows adjacent sections to nest and overlap, creating a continuous, rigid diaphragm. But the properties that make Z section steel so useful—its dimensional accuracy, its strength-to-weight ratio, its uniform thickness—are not the result of a single process. They are the result of cold forming. Cold forming is the process of bending and shaping steel at room temperature, without heating it. It transforms a flat steel coil into a three-dimensional Z profile through a series of roll stands. For procurement managers and structural engineers, understanding the role of cold forming in Z section steel manufacturing is essential for specifying a product that meets the structural and durability requirements of the project.

This guide is written for buyers who need to evaluate Z section steel for construction and industrial applications. We will explain what cold forming is, how it shapes the Z profile, the material and process parameters that determine quality, the advantages of cold forming over hot forming, and the criteria for evaluating a supplier. We will also provide detailed product parameters from our factory at Tianjin Shunchen Hongye Enterprise Management Co., Ltd. Whether you are sourcing purlins for a warehouse, girts for a factory, or rails for a solar mounting system, this guide will help you select Z section steel that is manufactured to the required standards.

Table of Contents

• 1. What Is Cold Forming and How Does It Create a Z Section?
• 2. Why Does Cold Forming Improve the Mechanical Properties of Z Section Steel?
• 3. How Do Roll Forming Parameters Determine Profile Accuracy?
• 4. What Material Selection Factors Affect Z Section Steel Quality?
• 5. How Does Cold Forming Compare to Hot Forming for Z Sections?
• 6. How Do You Evaluate a Z Section Steel Supplier?
• 7. What Are the Key Product Parameters from Our Factory?
• 8. Frequently Asked Questions (FAQ)
• 9. Conclusion

1. What Is Cold Forming and How Does It Create a Z Section?

Cold forming is the process of shaping steel at room temperature by passing a flat coil through a series of roll stands. Each stand contains a pair of rolls that progressively bend the steel into the desired profile. For a Z section, the steel coil is uncoiled and fed into the roll forming line. The first few stands bend the edges of the strip to form the flanges. Subsequent stands form the web and the return flanges, gradually increasing the bend angle until the final Z shape is achieved. The process is continuous, with the steel moving through the line at speeds of 10 to 30 meters per minute, depending on the profile complexity and the line configuration. The table below summarizes the key stages of the cold forming process for Z section steel.

At Tianjin Shunchen Hongye Enterprise Management Co., Ltd., our factory operates cold roll forming lines dedicated to Z section steel production. We use computer-controlled roll forming mills with up to 20 stands, allowing us to produce profiles with complex geometries and tight tolerances. Our lines are equipped with in-line punching and cutting, which ensures that the holes and lengths are accurate and consistent. Our engineering team can design custom roll forming sequences for non-standard Z sections.

2. Why Does Cold Forming Improve the Mechanical Properties of Z Section Steel?

Cold forming improves the mechanical properties of Z section steel through a phenomenon known as work hardening. When steel is bent at room temperature, its crystal structure is deformed, and the dislocations within the grains become entangled. This makes it more difficult for the grains to slide past each other, which increases the yield strength and the tensile strength of the steel. The effect is most pronounced at the bend corners, where the deformation is greatest. The work hardening at the corners can increase the local yield strength by 10% to 30%, depending on the steel grade and the bend radius. This is why cold-formed Z sections often have a higher load-carrying capacity than hot-formed sections of the same dimensions. The table below compares the mechanical properties of cold-formed and hot-formed Z section steel.

At our factory, we select steel grades and roll forming parameters that maximize the beneficial work hardening while minimizing the risk of cracking. We use steels with sufficient ductility to accommodate the bending without fracturing, and we control the bend radius to achieve the desired strength increase. Our quality control team tests the mechanical properties of the finished sections to verify that they meet the specified strength requirements.

3. How Do Roll Forming Parameters Determine Profile Accuracy?

The accuracy of a Z section steel profile depends on the roll forming parameters. These include the roll gap, the roll speed, the number of stands, the bend angle sequence, and the material tension. If the roll gap is too large, the steel will not be bent to the correct angle. If it is too small, the steel may be over-bent or the surface may be marked. The roll speed must be synchronized across all stands to prevent the steel from stretching or slipping. The number of stands determines how gradually the bend is introduced. A gradual bend sequence reduces residual stress and improves dimensional accuracy. The table below summarizes the key roll forming parameters and their effects on profile accuracy.

At Tianjin Shunchen Hongye Enterprise Management Co., Ltd., our factory uses computer-controlled roll forming lines that allow us to adjust the roll gap, speed, and bend sequence for each profile. We use laser measurement systems to verify the profile dimensions in real time during production. Our quality control team inspects the finished sections for dimensional accuracy, straightness, and surface quality. Our goal is to produce Z section steel that meets the tight tolerances required for modern construction.

4. What Material Selection Factors Affect Z Section Steel Quality?

The quality of a Z section steel profile depends not only on the cold forming process but also on the material selection. The steel grade, the coating, and the thickness tolerance all affect the final product. The most common steel grades for Z sections are S250GD, S280GD, and S350GD, which offer a balance of strength and ductility. The coating is typically hot-dip galvanized (Z275 or Z350) or pre-painted, depending on the application. The thickness tolerance is critical because it affects the load-carrying capacity and the fit of the nested sections. The table below summarizes the key material selection factors.

At our factory, we source steel coils from certified suppliers and verify the material certificates before production. We measure the thickness and the coating weight of every coil to ensure that it meets the specification. We also inspect the finished sections for surface quality and dimensional accuracy. Our goal is to provide our customers with Z section steel that meets the structural and durability requirements of their project.

5. How Does Cold Forming Compare to Hot Forming for Z Sections?

Cold forming and hot forming are two different processes for producing Z section steel. Hot forming involves heating the steel above its recrystallization temperature and then shaping it, typically by extrusion or hot rolling. Cold forming involves shaping the steel at room temperature by roll forming. The two processes produce different material properties and different surface finishes. Cold-formed Z sections have higher strength at the corners due to work hardening, a smoother surface finish, and tighter dimensional tolerances. Hot-formed Z sections have a more uniform grain structure and lower residual stress, but they are more expensive to produce and have a rougher surface. The table below compares the two processes.

At Shunchen, our factory specializes in cold forming because it offers the best combination of strength, accuracy, and cost for Z section steel. We also offer hot-formed sections for applications that require lower residual stress. Our engineering team can advise on the best process for your specific application.

6. How Do You Evaluate a Z Section Steel Supplier?

Evaluating a supplier of Z section steel requires a focus on roll forming capability, material quality, quality control, and technical support. The supplier must have the roll forming lines and the expertise to produce the required profile with the specified tolerances. They must use certified steel coils and verify the material properties. They must have a quality control system that includes dimensional inspection, surface inspection, and mechanical testing. And they must provide technical support to help customers select the right profile for their application. The table below summarizes the evaluation criteria.

At our factory, we have been producing Z section steel for over a decade. We operate advanced roll forming lines with CNC control and in-line punching. We source certified steel coils and verify the material properties. We have a comprehensive quality control system and a technical team that can assist with profile design and load calculations. We invite you to evaluate us against these criteria and to consider us as your partner for Z section steel.

7. What Are the Key Product Parameters from Our Factory?

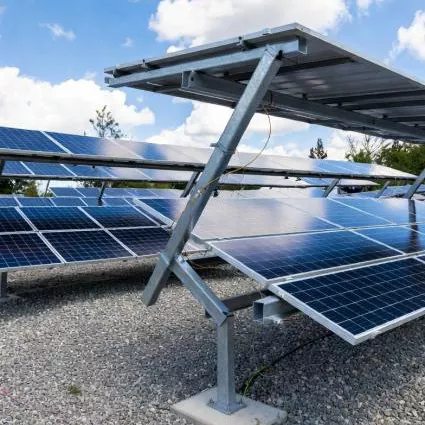

The following table provides the key product parameters for our Z section steel. These sections are designed for purlins, girts, roof rails, and solar mounting systems. Our factory can also produce custom profiles to meet specific requirements.

At our factory, we manufacture our Z section steel to meet these specifications and more. We can customize the web height, flange width, thickness, grade, coating, and hole pattern to suit your specific requirements. Our quality control system includes inspection of raw materials, in-process inspection, and final inspection before shipment. Our goal is to provide our customers with high-quality Z section steel that meets their structural and durability requirements.

8. Frequently Asked Questions (FAQ)

Question 1: What is the main advantage of cold forming over hot forming for Z section steel?

Answer: The main advantage is the combination of higher strength at the corners due to work hardening, tighter dimensional tolerances, and a smoother surface finish. Cold forming also has a lower relative cost. Hot forming produces a more uniform grain structure and lower residual stress, but it is more expensive and less precise. For most construction applications, cold-formed Z section steel offers the best balance of performance and cost.

Question 2: How does the roll forming process affect the strength of Z section steel?

Answer: The roll forming process introduces work hardening at the bend corners, which increases the local yield strength by 10% to 30%. This is beneficial for load-carrying capacity. However, the process also introduces residual stress, which must be controlled through proper roll gap, bend sequence, and material selection. At Tianjin Shunchen Hongye Enterprise Management Co., Ltd., we optimize the roll forming parameters to maximize strength while minimizing residual stress.

Question 3: What steel grades are suitable for cold-formed Z sections?

Answer: The most common steel grades for cold-formed Z sections are S250GD, S280GD, and S350GD. These grades offer a good balance of strength and ductility, which is necessary for cold bending without cracking. Higher-strength grades are available, but they require careful control of the bend radius and the roll forming parameters to avoid fracture.

Question 4: Can Z section steel be punched in-line during cold forming?

Answer: Yes, in-line punching is a standard feature of modern roll forming lines. The punching station is integrated into the line, and the holes are punched as the steel moves through. This ensures that the holes are accurately positioned and eliminates the need for a separate punching operation. At our factory, we offer in-line punching with custom hole patterns to suit the specific requirements of our customers.

Question 5: What is the typical lead time for a Z section steel order?

Answer: The typical lead time for a Z section steel order is 2 to 4 weeks, depending on the quantity, the profile complexity, and the coating requirements. For large orders or custom profiles, the lead time may be longer. At Tianjin Shunchen Hongye Enterprise Management Co., Ltd., we work closely with our customers to meet their project schedules.

9. Conclusion

Cold forming plays a central role in Z section steel manufacturing. It transforms a flat steel coil into a three-dimensional profile with high dimensional accuracy, a smooth surface finish, and increased strength at the corners due to work hardening. The process is continuous and efficient, with in-line punching and cutting that ensure the finished sections are ready for installation. The quality of the finished product depends on the steel grade, the roll forming parameters, and the supplier's quality control. At Tianjin Shunchen Hongye Enterprise Management Co., Ltd., our factory has the roll forming capability, the material expertise, and the quality control systems to produce high-quality Z section steel for construction and industrial applications.

Whether you are sourcing purlins for a warehouse, girts for a factory, or rails for a solar mounting system, we invite you to contact us to discuss your requirements. We can provide samples, technical data, and customized solutions. Our commitment to quality and customer satisfaction has made us a trusted partner for construction projects around the world.

Contact Tianjin Shunchen Hongye Enterprise Management Co., Ltd. today to discuss your Z section steel requirements and discover how our cold forming capabilities can meet your project needs.
