Plug and Play Balcony Solar Mount
Maximize your balcony's potential effortlessly with our innovative Plug and Play Balcony Solar Mount system. This solution is designed for urban dwellers and property owners seeking a straightforward path to renewable energy without complex installations or permanent structural modifications. The core of this system is its versatile Balcony Solar Power Station Fixing Kit, which provides all necessary components for a secure and stable setup. For secure attachment to various railing types, our Solar Panel Rail for Balcony Balustrade offers a universal and robust mounting framework. Safety is paramount, which is why the integrated Wind-Resistant Balcony Solar Racking engineering ensures your investment remains protected in diverse weather conditions. Furthermore, our system complies with specific regional standards, featuring components like the Germany Market Solar Balcony Hook, designed to meet rigorous German building and safety codes.
The Plug and Play Balcony Solar Mount redefines simplicity in solar integration. Engineered for universal compatibility, it accommodates most standard balcony railings, concrete walls, and parapets, requiring no drilling or specialized tools for assembly. The system's modular design allows for easy scaling, enabling you to start with a single panel and expand your array as needed. Its lightweight yet durable aluminum alloy construction ensures long-term reliability without adding excessive weight to your balcony structure. The intuitive clamp-based installation process means you can have your solar panels operational in a matter of hours, not days. With the Plug and Play Balcony Solar Mount, you gain a future-proof foundation for clean energy generation, combining innovative design with practical functionality for immediate energy savings and a reduced carbon footprint.
Key Product Specifications
- Material: High-grade, powder-coated aluminum alloy (ANSI 6005-T5)
- Load Capacity: Supports up to 80 kg (176 lbs) per mounting set
- Wind Resistance: Certified for wind loads up to 150 km/h (93 mph)
- Panel Compatibility: Adjustable clamps for panels 30-40mm in thickness
- Railing Compatibility: Fits round, square, and rectangular railings from 20mm to 60mm in diameter/width
- Installation Time: Average setup time of 1-2 hours for a standard system
- Corrosion Resistance: Anodized and powder-coated finish for superior weather protection
Technical Data & Compatibility
| Component | Model Number | Dimensions (LxWxH) | Weight | Max. Panel Size Supported |
|---|---|---|---|---|
| Main Mounting Rail | BP-MMR-2400 | 2400 x 40 x 50 mm | 2.8 kg | Up to 2.0 x 1.2 m |
| Universal Railing Hook | BP-URH-01 | Adjustable | 0.45 kg | N/A |
| End Clamp Set | BP-ECS-04 | Per clamp: 80 x 40 x 30 mm | 0.15 kg (per clamp) | N/A |
| Mid Clamp Set | BP-MCS-06 | Per clamp: 60 x 40 x 30 mm | 0.12 kg (per clamp) | N/A |
| Tilt Angle Bracket | BP-TAB-10/20/30 | Varies by model | 0.9 kg | N/A |
Included in Standard Kit
- 2x Main Mounting Rails (BP-MMR-2400)
- 4x Universal Railing Hooks (BP-URH-01)
- 4x End Clamps (BP-ECS-04)
- 8x Mid Clamps (BP-MCS-06)
- 1x Set of Tilt Angle Brackets (10°, 20°, or 30°)
- All necessary stainless steel (A2-70) bolts, nuts, and washers
- Hex key set and installation guide
Related Products
Hot Products
Steel Beam
Shunchen supplies premium standard and customized Hot rolled carbon steel beam fabricated from high-quality Q235B/Q355B carbon steel slabs, a robust hot-formed structural steel profile widely used for bulk cross-border procurement in high-rise construction, bridge engineering and heavy machinery frame manufacturing. It features uniform internal metal grain, outstanding bending resistance, reliable weldability and flexible formability that supports easy cutting, drilling and assembly, commonly applied for building main load-bearing frames, bridge girders and heavy equipment support frames for overseas purchasers. Equipped with fully automatic hot rolling production lines, straightening machines and multi-stage flaw detection systems, every batch of this structural product delivers consistent section dimensions, neat rolling surfaces and stable mechanical properties. A full series of standard section sizes are kept in stock, supporting custom fixed-length cutting, anti-rust surface treatment and deep secondary machining to satisfy diverse global bulk procurement demands. You may contact Shunchen’s sales team to obtain factory wholesale prices, free samples and integrated cross-border procurement solutions, paired with stable FOB and CIF export logistics for long-term overseas procurement partners.
A-section Refined Steel
A-section Refined Steel is an A-profile section formed from hot-rolled H-beams and high-quality slabs through CNC slitting, precision straightening, finishing polishing, and fixed-length processing. It is mainly made of carbon steel, low-alloy high-strength steel, and stainless steel, and can undergo surface treatments such as hot-dip galvanizing, fluorocarbon spraying, wire drawing, and sandblasting as required. As a standard fixed-length profile, A-section Refined Steel features regular cross-sections, high straightness, and controllable dimensional accuracy. It combines high strength, high bending resistance, and high decorativeness of metallic materials, making it a highly versatile high-precision structural profile for building curtain walls, precision steel structures, and decoration industries. In short, A-section Refined Steel is the high-precision finished form for steel structure engineering. After subsequent processing such as cutting, drilling, welding, and installation, it can be directly used in terminal parts like curtain wall keels, decorative lines, frame supports, and edge closing. Its core function is to provide standardized, high-precision, and high-appearance profile support for downstream projects, solving the pain points of ordinary section steel such as poor precision, rough appearance, difficult alignment during installation, and high loss.
Hot-Rolled Black Coil
Shunchen Hot-Rolled Black Coil is a high-performance basic steel material for global industrial procurement. Developed and supplied by Shunchen with rich steel industry experience, it is produced from premium carbon structural steel via standardized hot rolling procedures. Featuring natural dense oxide surface, stable mechanical properties and outstanding comprehensive processability, the product supports diversified deep processing, bulk order supply and one-stop supporting services. It is widely favored by steel structure factories, machinery manufacturers and pipe processing enterprises, and fully meets large-batch purchasing and long-term cooperation demands from worldwide clients.
Galvanized Steel Strapping Band
Shunchen Galvanized Steel Strapping Band is a professionally tested industrial essential, made by an experienced Chinese manufacturer specializing in metal packaging supplies. After six months of rigorous field tests in steel mills, freight yards and warehouses under heavy loads, this product delivers excellent tensile strength and anti-loosening performance. We also offer blued and black finishes to satisfy diverse requirements. It works perfectly for steel bundling, heavy cargo fixing, metal profile binding, pallet securing and container cargo reinforcement. A full range of sizes are available, and each specification is engineered for dedicated usage scenarios. With strict in-factory quality control for every piece, Shunchen has become a top choice for global purchasers with various industrial bundling needs.

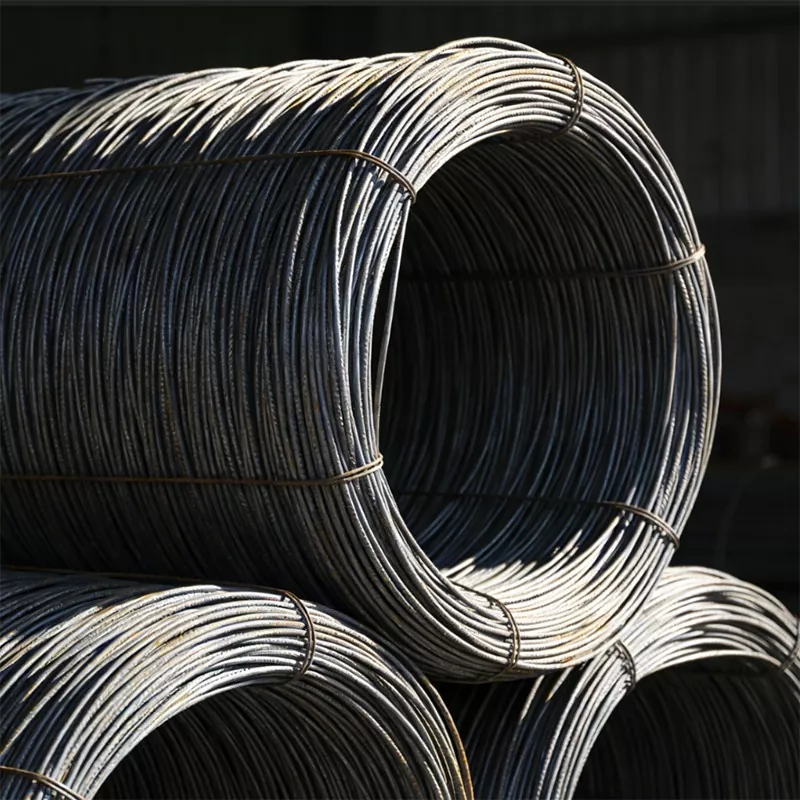

Deformed Bar in Coil
