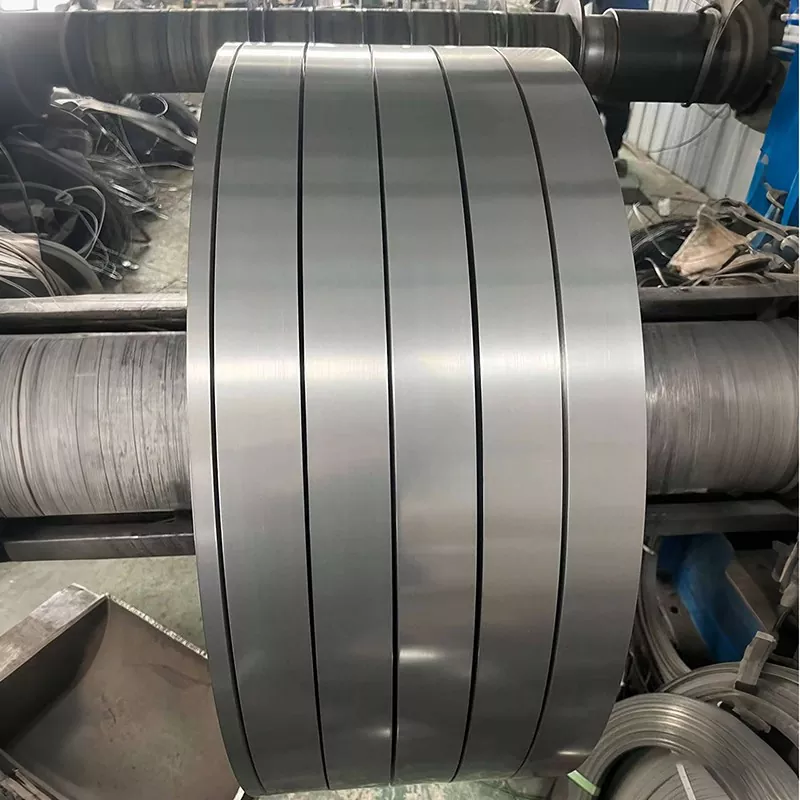

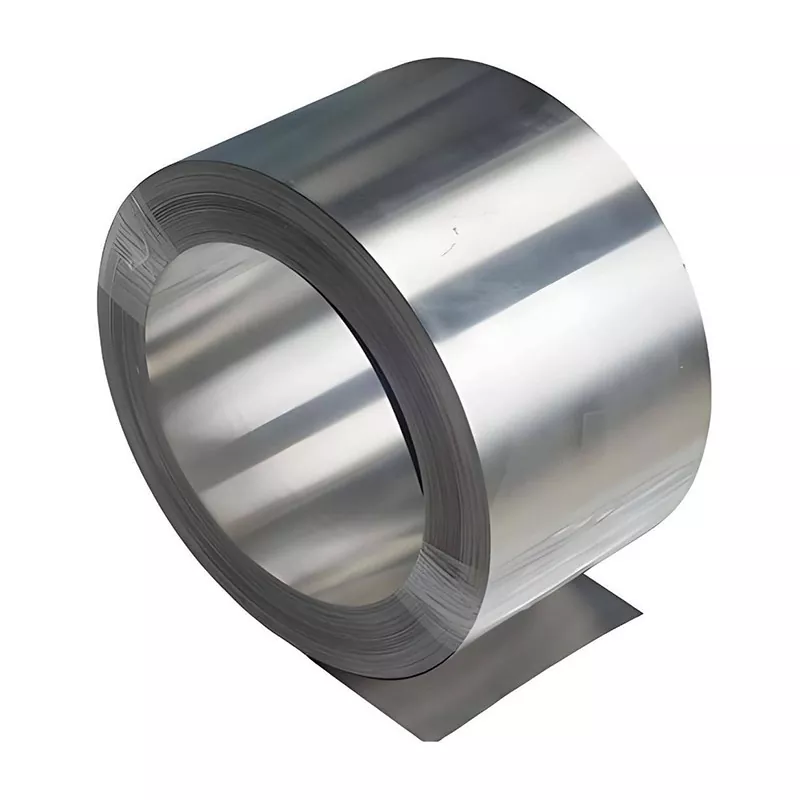

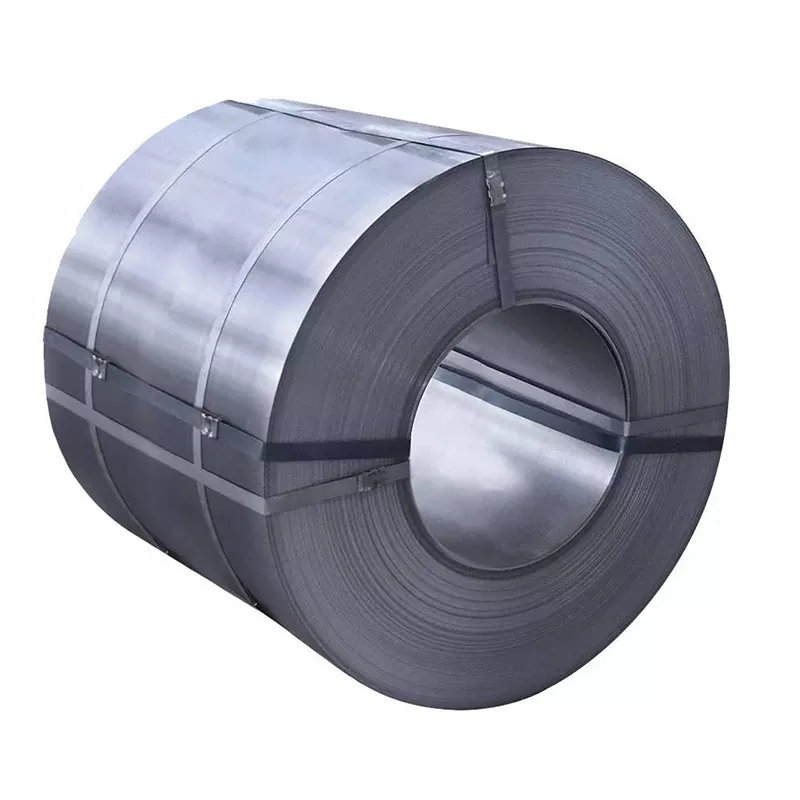

Cold Rolled Steel Strip

The surface of Cold Rolled Steel Strip is free of pitting and oxidation defects, achieving a mirror-like finish with Ra≤0.4μm and a thickness tolerance stable within ±0.02mm, improving the yield rate of downstream processing. Vacuum-degassed steel billets are used, resulting in low gas content and inclusions. Precise annealing control ensures a uniform internal microstructure, minimal fluctuation in tensile strength, and a combination of high tensile strength and good deep-drawing and bending performance.

Shunchun offers standard specifications in stock for immediate shipment, and customized specifications are delivered quickly. A professional technical team provides material selection advice and process optimization. Green production is achieved through energy-saving and environmentally friendly rolling and scrap steel recycling, supporting processing services such as slitting and annealing, adapting to the stringent requirements of precision manufacturing, high-end equipment and other fields, and taking into account both quality and overall cost advantages.

Cold Rolled Steel Strip is a strip steel product made from hot-rolled strip steel or steel plate, processed at room temperature (below the recrystallization temperature of the metal) through multiple processes including rolling, annealing, and pickling on a cold rolling mill (four-roll, six-roll, or multi-roll mill). Finished cold-rolled strip steel is mostly supplied in coils, with a thickness typically ranging from 0.1 to 3 mm and a width from 100 to 2000 mm. Thick strips less than 0.2 mm can be further processed into extremely thin strip steel or foil, with the thinnest reaching below 0.001 mm.

Compared to hot-rolled strip steel, Shunchun's Cold Rolled Steel Strip does not require high-temperature heating, thus avoiding the formation of iron oxide scale and uneven temperature drop from the source. Its core value lies in providing a steel base material with higher precision, superior surface quality, and more stable mechanical properties. It can be used directly for subsequent processing or upgraded into high-value-added products through coating, plating, and other processes, meeting the stringent material requirements of precision manufacturing, high-end equipment, and other fields.

Shunchen Cold Rolled Steel Strip offers customers an exceptional product experience with its superior surface and dimensional accuracy, stable and excellent mechanical properties, high material purity, and efficient delivery. Through pickling pretreatment and precision rolling processes, the surface is free of defects such as pitting and iron oxide scale, achieving a mirror-like finish with Ra≤0.4μm. Simultaneously, precise dimensional control ensures thickness tolerances remain stable within ±0.02mm, improving the yield rate of downstream processing.

The basic specifications are as follows:

Application areas and cases

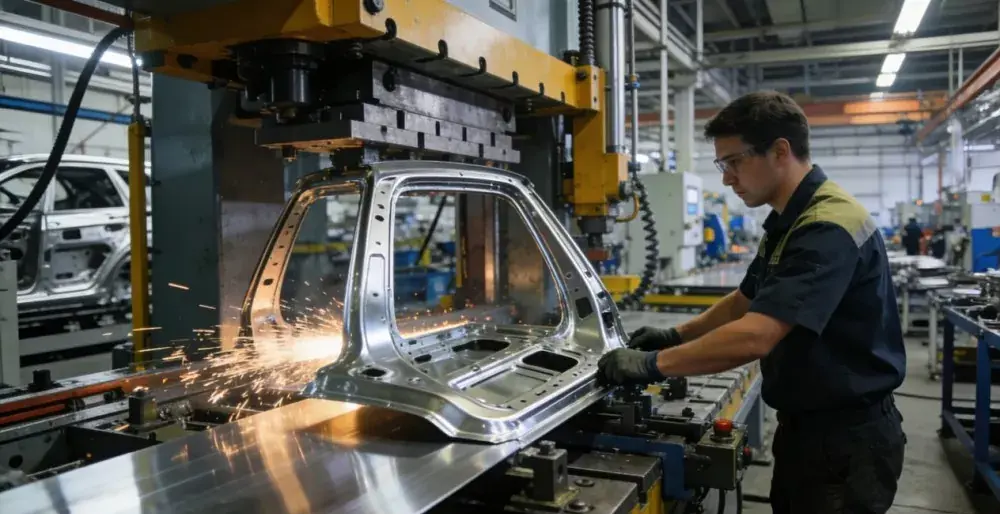

1. Automotive Industry

Application Scenarios: Body panels (doors, hoods), structural components (bumper beams), interior support components, etc.

Typical Cases: Supplying DC06 deep-drawing cold-rolled steel sheets (thickness 0.8~1.2mm) to a well-known domestic automaker for the manufacture of body panels for new energy vehicles. Thanks to the excellent dimensional accuracy of deep-drawing performance, the assembly gap deviation is controlled within 0.3mm. Combined with galvanizing to improve rust resistance, the vehicle warranty period is extended by 2 years. Also supplying HC340/590DP high-strength cold-rolled steel for bumper beams, with a tensile strength ≥590MPa, meeting vehicle safety collision standards and helping the model achieve a C-NCAP five-star rating.

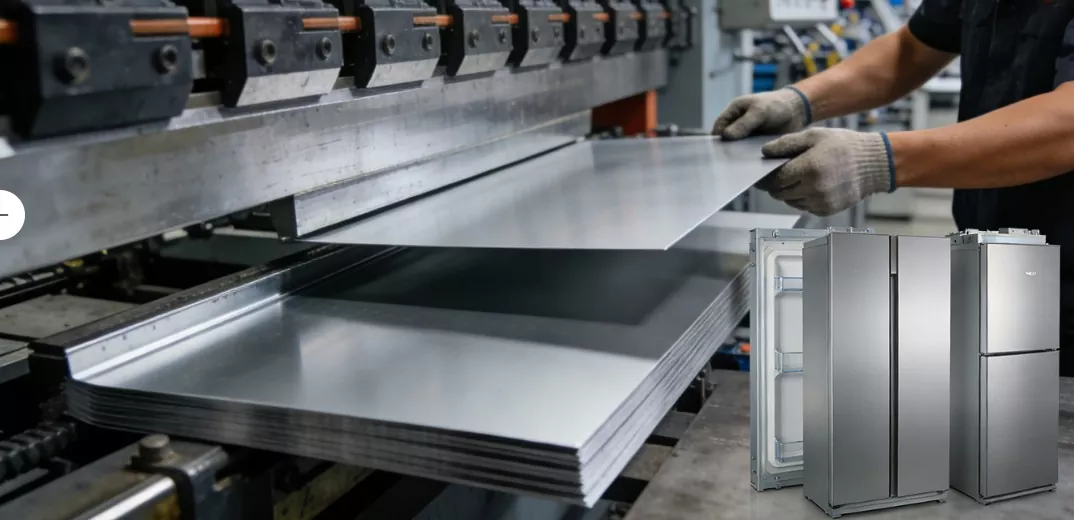

2. Home Appliance Manufacturing

Application Scenarios: Refrigerator side panels, washing machine drums, air conditioner heat sinks, appliance panels, etc.

Typical Cases: Providing large home appliance companies with 0.5mm thick galvanized Cold Rolled Steel Strips (60g/m² zinc coating) for refrigerator side panel production. The sheets have a smooth, flawless surface, strong coating adhesion, and pass salt spray testing with over 1000 hours of corrosion resistance, reducing product return rates to below 0.5%. Also supplying 0.1mm thick 304 stainless steel cold-rolled strips for air conditioner heat sinks, balancing ultra-thin characteristics with high thermal conductivity, helping to improve air conditioner energy efficiency ratings by one level.

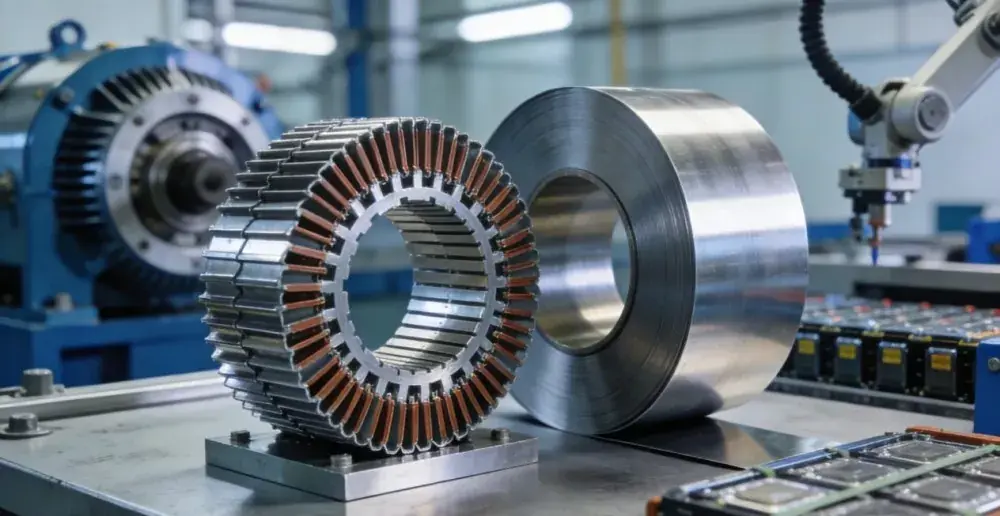

3. Motors and New Energy Field

Application Scenarios: Motor cores, electric vehicle drive systems, structural components for new energy equipment, etc.

Typical Cases: Supplying B35A300 electrical steel Cold Rolled Steel Strip to a large motor manufacturer for the production of high-efficiency motor cores. The material's excellent magnetic permeability improves the motor's energy efficiency rating to Level 1, reducing energy consumption by 15%. Providing B35A440 silicon steel cold-rolled strip to new energy vehicle manufacturers, suitable for electric vehicle drive systems, exhibiting stable performance under high-frequency operating conditions, reducing overall energy consumption, and contributing to an 8% increase in driving range.

Customer feedback

A new energy vehicle component supplier: The purchased products are used in the production of anti-collision beams. Previously, due to large fluctuations in tensile strength of other brands, the stamping scrap rate reached 8%. After switching to the newer brand, the scrap rate dropped to 1.2%, the thickness tolerance is precise, the technical team can optimize material parameters, and 24-hour on-demand response can meet urgent orders. There have been no quality complaints in three years of cooperation. A technical manager of a large motor manufacturing company: The motor core has high requirements for magnetic permeability and surface quality. After using the B35A300 model, the motor energy consumption decreased by 15%, the improved surface finish improved the lamination accuracy and reduced noise, each batch comes with a complete test report, and all 10 batches submitted for testing met the standards.

Reasons to Choose Us

Shunchun Cold Rolled Steel Strip boasts high precision, superior performance, and strong customization capabilities as its core advantages. The product thickness tolerance can be precisely controlled to ±0.01mm, with a smooth and delicate surface and flat shape, meeting the demands of precision machining and high-end appearance. Through advanced rolling and heat treatment processes, Shunchun ensures uniform and stable mechanical properties of the material, while also possessing excellent stamping formability. Shunchun supports flexible specification customization with thicknesses above 0.1mm and widths up to 1250mm, and provides processing services such as slitting and annealing, fully adapting to the diverse needs of industries such as electronics, automotive, and home appliances. Combining the cost advantages of large-scale production with professional process support, Shunchun cold-rolled strip steel provides customers with reliable quality, efficient supply, and more cost-effective precision material solutions.

Dedicated service support

Technical Support: We provide material testing reports and processing technology adaptation suggestions, optimizing material parameters for complex molding needs to help customers improve production efficiency;

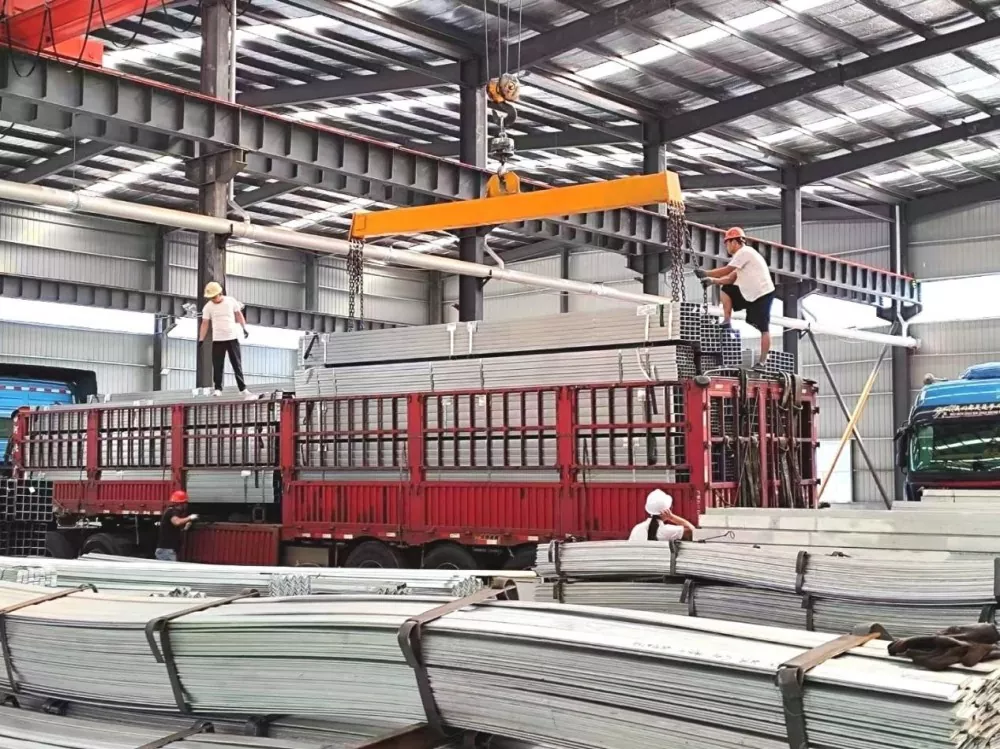

Delivery Guarantee: We use suitable packaging methods to avoid surface scratches or dimensional deformation during transportation, and provide logistics tracking services to ensure on-time delivery;

Customization Extension: We support small-batch customized trial production to help customers verify product compatibility before bulk purchasing, reducing procurement risks.
