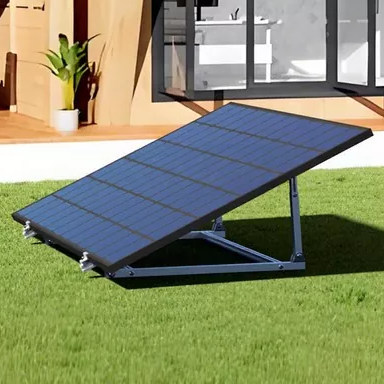

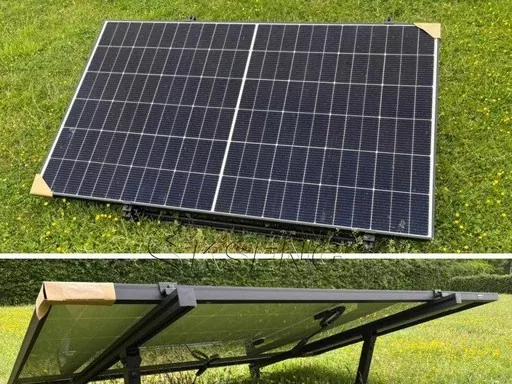

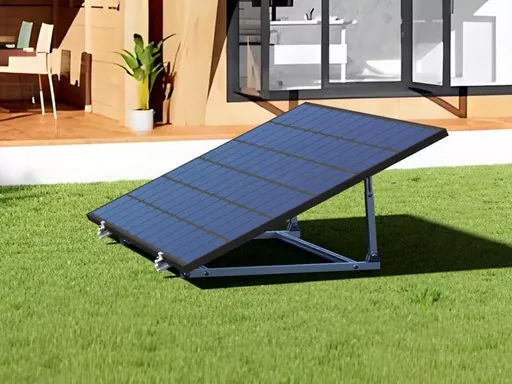

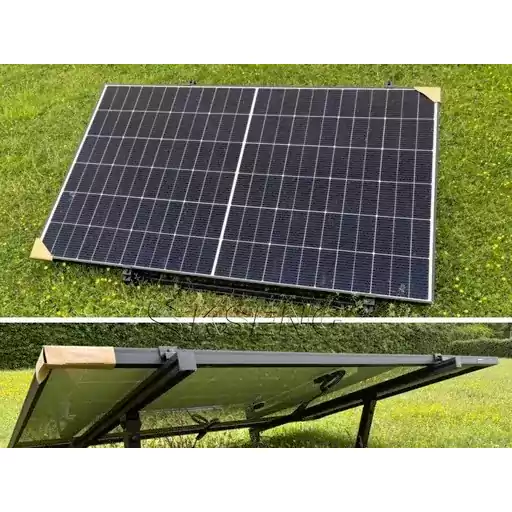

Balcony PV Bracket

Shunchen Balcony PV Bracket is a high-quality customized supporting product manufactured and supplied by a professional Chinese enterprise, featuring excellent load-bearing capacity and corrosion resistance. We adopt precision welding and hot-dip galvanizing technology to produce brackets perfectly matched with balcony PV systems. Our products are easy to install, with reliable quality and competitive prices, fully meeting the procurement needs of global customers for distributed photovoltaic projects.

    High-strength, weather-resistant supporting structures engineered for urban balconies, villa terraces, and apartment corridors. Featuring hot-dip galvanizing, rapid modular installation, and customizable tilt angles.

    • Level 12 Wind Resistance
    • ≥ 500h NSS Test
    • 0-30° Adjustable Tilt
    • 20+ Years Service Life

    Our Shunchen Balcony PV Bracket is a specialized supporting component independently developed for balcony distributed photovoltaic systems. Manufactured using high-quality carbon steel (Q235B and Q355B) as the base material, it is processed through CNC cutting, precision welding, and hot-dip galvanizing anti-corrosion treatment. Explore our full range of photovoltaic supports for other mounting solutions.

    As a professional PV bracket manufacturer, we control the entire process from raw material selection to finished product delivery. The bracket structure is scientifically designed according to the balcony layout and the weight of PV modules, combining high-strength load-bearing performance with long-term anti-corrosion capability.

    Core Advantages

    01

    Superior Load-Bearing & Wind Resistance

    The main beam and diagonal braces are designed to bear force collaboratively. It can carry a single PV module over 500W, with a wind resistance grade up to Level 12 and snow load resistance ≥0.5kN/㎡, maintaining structural stability even in severe typhoons and blizzards.

    02

    Long-Lasting Corrosion Resistance

    Treated with a fully automatic hot-dip galvanizing process, the Balcony PV Bracket's uniform coating thickness is ≥85μm. It has passed the 180° bending test without peeling, and the NSS test duration is ≥500 hours, providing a service life of over 20 years for outdoor installations.

    03

    Quick & Easy Installation

    The modular design allows for pre-assembly before delivery. No on-site welding is required; fixing can be completed with a wrench. One set can be installed by 1-2 people within 2 hours, drastically reducing labor costs and construction cycles.

    04

    Flexible Customization & Compatibility

    We customize sizes and angles according to different balcony layouts and PV module specifications. It supports 0-30° tilt angle adjustment to maximize solar energy reception efficiency for your specific site conditions.

    Technical Specifications

    Parameter Category Specific Indicators
    Base Material Q235B, Q355B (stainless steel customizable)
    Production Process CNC Cutting + Precision Welding + Hot-Dip Galvanizing
    Executive Standards GB/T 3323-2019 (Welding Quality), GB/T 13912-2020 (Hot-Dip Galvanizing)
    Mechanical Properties Rated Load ≥50kg/㎡; Wind Resistance Grade ≥Level 12; Snow Load Resistance ≥0.5kN/㎡
    Bracket Specifications Main Beam: 1000-2000mm length, 80-150mm width, 2.0-3.0mm thickness; Diagonal Brace: 500-1000mm; Pipe Diameter: 30-50mm
    Galvanizing Parameters Coating Thickness ≥85μm; No peeling after 180° bending; NSS test ≥500 hours
    Compatible Modules Mainstream PV modules (Power: 300-550W; Size: within 1600×1000mm)
    Tilt Angle 0-30° manual adjustment
    Installation Methods Guardrail clamping / Wall expansion bolt (suitable for concrete, steel structure)

    Project Case: Urban Residential Community

    We supplied customized brackets (main beam 1500×100×2.5mm, tilt 15°) for 500 homeowners in a new community, paired with 450W PV modules. Using guardrail clamping installation, no damage to the balcony structure was caused, and installation efficiency increased by 50%. After 1 year of outdoor verification, there is no rust or deformation, and power generation remains stable.

    Why Choose Shunchen?

    Comparison Dimension Standard Peer Manufacturers Shunchen (Our Company)
    Structural Design Universal section steel splicing, poor stability. Exclusive mechanical design, main beam + diagonal braces collaborative bearing.
    Anti-Corrosion Process Cold galvanizing, thin coating, NSS test only 200 hours. Fully automatic hot-dip galvanizing, ≥85μm coating, NSS test ≥500 hours.
    Customization Only conventional sizes, 10-15 days cycle. Customized to balcony layouts, drawing within 72 hours.
    Supply Guarantee Insufficient stock, unstable delivery. Self-owned warehouse, bulk orders delivered within 7 days.
    Supporting Services Only provide products. Installation scheme design, on-site technical guidance, 24-hour after-sales response.

    Certifications & Quality Assurance

    As a manufacturer focusing on PV bracket R&D, we strictly control quality and provide full-chain assurance. We are certified with ISO 9001 Quality Management and ISO 14001 Environmental Management. Products comply with national technical standards, and we provide SGS third-party mechanical and anti-corrosion performance test reports.

    Our production lines utilize fully automatic CNC cutting and welding with on-line flaw detection. The galvanizing process uses real-time zinc bath temperature monitoring. Every batch undergoes load-bearing simulation, coating thickness tests, and surface quality inspections. Check our certifications for more information.

    Frequently Asked Questions

    What is the maximum load-bearing capacity of the Balcony PV Bracket?

    The conventional Q355B material main beam (1500×100×2.5mm) can stably carry a single 550W PV module, with a rated load ≥50kg/㎡. It meets Level 12 wind resistance and 0.5kN/㎡ snow load requirements. We provide professional selection advice based on your module weight.

    How to choose the right bracket for different balcony layouts?

    For bay balconies, guardrail clamping brackets are preferred (no drilling needed); for recessed or narrow balconies, wall-mounted brackets save space; for corner balconies, L-shaped custom brackets maximize space. We provide the optimal scheme based on your balcony size drawing.

    Can you provide electrostatic spraying instead of hot-dip galvanizing?

    Yes. Our default is hot-dip galvanizing (≥85μm) for excellent corrosion resistance. We can also customize electrostatic spraying on demand, supporting various colors to match the building's exterior appearance.

    Do you support factory inspections and logistics for bulk orders?

    Absolutely. For orders over 100 sets, we welcome customers to our factory for on-site quality acceptance. We also provide exclusive logistics coordination to ensure the brackets are delivered safely and on time to your project site.
