ASTM A106 Grade B Round Pipe
For demanding high-temperature and high-pressure applications in power generation, petrochemical, and boiler systems, ASTM A106 Grade B Round Pipe stands as the industry benchmark for seamless carbon steel piping. As a premier member of the Seamless Carbon Steel Round Tube family, it offers superior strength and reliability compared to welded alternatives. While ERW Carbon Steel Round Pipe serves well for many structural and mechanical purposes, A106 Gr. B is specifically engineered for critical service conditions. It is often specified alongside or in place of ASTM A53 Carbon Steel Round Tube, particularly when seamless construction and higher temperature performance are mandatory. For projects requiring corrosion resistance in less aggressive environments, a Galvanized Carbon Steel Round Pipe may be considered, but for the core high-temp infrastructure, A106 Grade B remains the unmatched choice.
The exceptional performance of ASTM A106 Grade B Round Pipe is a direct result of its precise chemical composition and rigorous mechanical properties as defined by the ASTM International standard. This specification ensures consistent quality and performance across all supplied materials. The following tables detail the key parameters that define this high-performance piping product.
Chemical Composition Requirements
| Element | Composition, max % |
|---|---|
| Carbon | 0.30 |
| Manganese | 0.29 - 1.06 |
| Phosphorus | 0.035 |
| Sulfur | 0.035 |
| Silicon | 0.10 min |
| Chromium | 0.40 |
| Copper | 0.40 |
| Molybdenum | 0.15 |
| Nickel | 0.40 |
| Vanadium | 0.08 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength, min | 415 MPa (60,200 psi) |
| Yield Strength, min | 240 MPa (35,000 psi) |
| Elongation in 2 in. (50.8 mm), min % |
|
Key Product Specifications & Tolerances
- Specification: Conforms to ASTM A106 / ASME SA106.
- Grade: B (Common grades are A, B, and C, with B being the most widely used).
- Type: Seamless (SMLS).
- Manufacturing Process: Hot finished or cold drawn.
- Size Range: Standard nominal pipe sizes (NPS) from 1/8" to 24" and larger. Outer diameters (OD) and wall thicknesses per ASME B36.10M.
- Wall Thickness: Available in standard (STD), extra strong (XS), and double extra strong (XXS) schedules, among others.
- Length: Typically supplied in random lengths (R/L) of 16-22 feet, or cut to length (C/TL) as required.
- End Finish: Plain end (PE), beveled end (BE) for welding, or threaded and coupled (T&C).
- Temperature Service: Suitable for high-temperature service up to approximately 750°F (399°C) for continuous operation.
- Testing & Certification: Hydrostatic or non-destructive electric test, heat analysis, mechanical properties test. Mill Test Certificate (MTC) or Certificate of Compliance (COC) provided.
- Surface Finish: Black (hot rolled) or bare (cold drawn). Can be coated or painted upon request.
Related Products
Hot Products
Metal Roof Solar Mount
Shunchen Industry's meticulously crafted High-quality Metal Roof Solar Mount is a photovoltaic support system specifically designed for factory roofs and commercial building metal roofs. This system utilizes high-precision square tubes and structural steel as core components, combined with custom-designed pre-embedded connectors. Through standardized design and customized precision processing, it can stably support solar photovoltaic modules and perfectly adapt to the installation needs of metal roofs with different slopes and materials.
Deformed Bar in Coil
Tianjin Shunchen factory's Deformed Bar in Coil, also known as hot-rolled ribbed steel bars, has two longitudinal ribs and evenly distributed transverse ribs on its surface. The core materials are HRB400 and HRB500, with diameters ranging from 6mm to 50mm. It can be made into straight bars or coils and is the core steel material that can withstand tensile forces in concrete components. Its transverse rib design can enhance the bond strength with concrete, which is different from round steel bars and suitable for the stress requirements of multiple scenarios in construction and infrastructure.
Z folding container house
Shunchen Industry is a professional manufacturer and source factory in China specializing in the production of Z folding container house. It focuses on customizing, producing, and supplying high-quality Z folding container house. Shunchen offers direct purchasing and bulk quotation cooperation services. Z folding container house have completely solved the industry pain points of traditional temporary buildings in terms of long construction period, high cost, non-reusable nature, and poor adaptability. Z folding container house have core advantages such as strong portability, no need for wet work during installation, low carbon and environmental protection, strong durability, and fire and heat resistance. They also support personalized customization. We welcome all customers to consult, inquire, and negotiate for bulk orders for long-term cooperation.
Galvanized Steel Strapping Band
Shunchen Galvanized Steel Strapping Band is a professionally tested industrial essential, made by an experienced Chinese manufacturer specializing in metal packaging supplies. After six months of rigorous field tests in steel mills, freight yards and warehouses under heavy loads, this product delivers excellent tensile strength and anti-loosening performance. We also offer blued and black finishes to satisfy diverse requirements. It works perfectly for steel bundling, heavy cargo fixing, metal profile binding, pallet securing and container cargo reinforcement. A full range of sizes are available, and each specification is engineered for dedicated usage scenarios. With strict in-factory quality control for every piece, Shunchen has become a top choice for global purchasers with various industrial bundling needs.

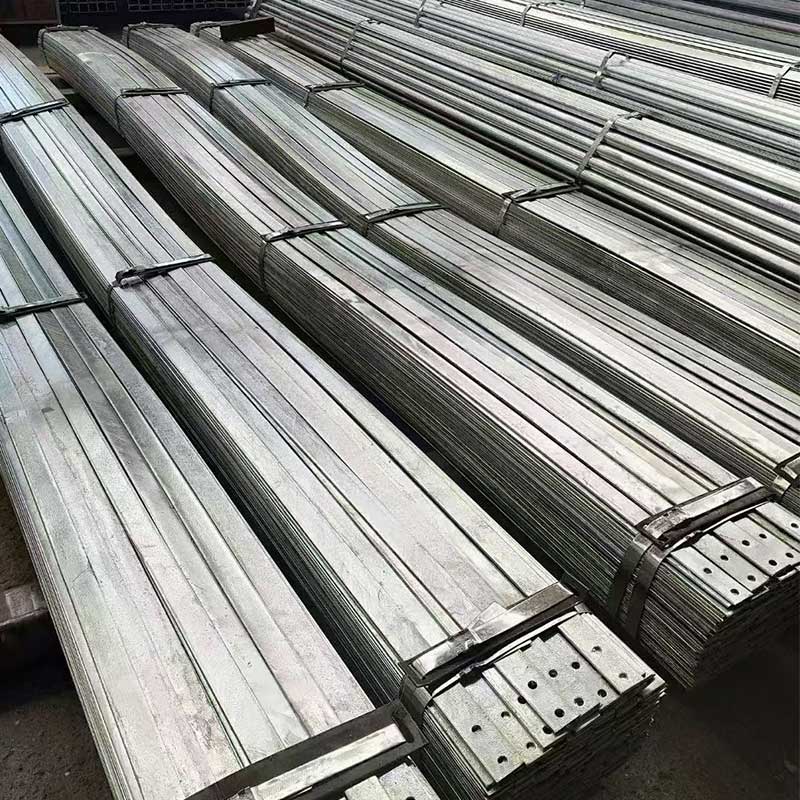

Hot-dip galvanized flat steel
Shunchen supplies premium hot-dip galvanized flat steel, a durable solid flat steel profile widely adopted for bulk international procurement in construction, metal frame, pipeline support and hardware manufacturing. With uniform flat cross-section, full zinc anti-rust coating and great machinability for cutting, punching, welding and bending, it acts as cost-effective long-service raw material for cross-border mass procurement to make brackets, structural supports, fence frames and engineering hardware. We customize standard and bespoke hot-dip galvanized flat steel from high-grade Q235B/Q355B carbon steel slabs; our fully automatic hot rolling, straightening and integrated hot-dip galvanizing lines with multi-stage flaw detection deliver each batch smooth-surfaced, dimensionally stable and reliably corrosion-resistant. A full range of width and thickness sizes are available in stock, with custom length cutting, edge deburring and secondary machining to satisfy diverse global bulk procurement needs. Contact us for factory wholesale prices, free samples and tailored cross-border procurement solutions, alongside steady FOB/CIF export services for long-term overseas procurement partners.

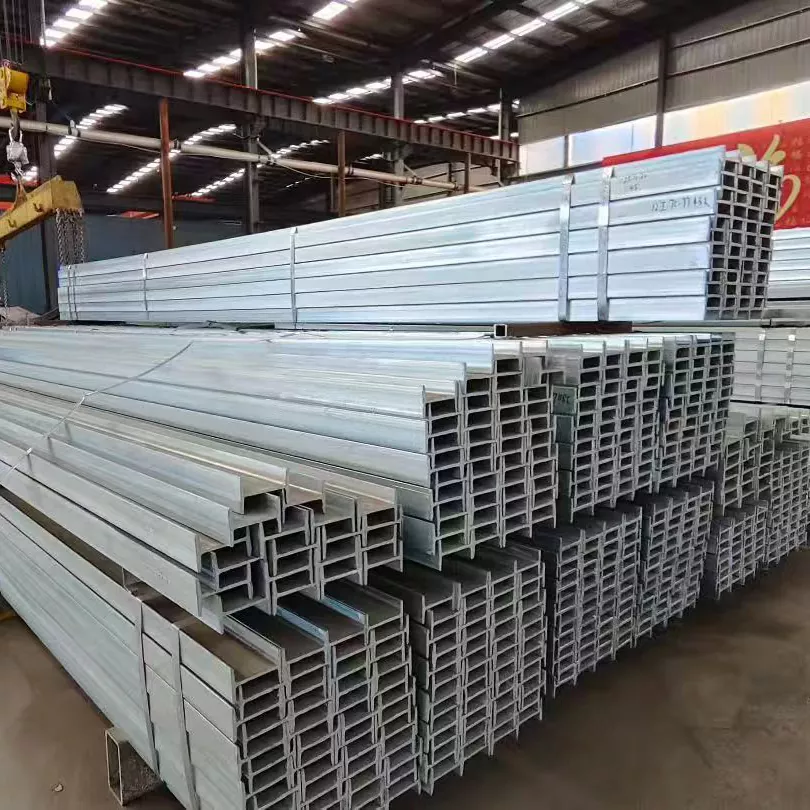

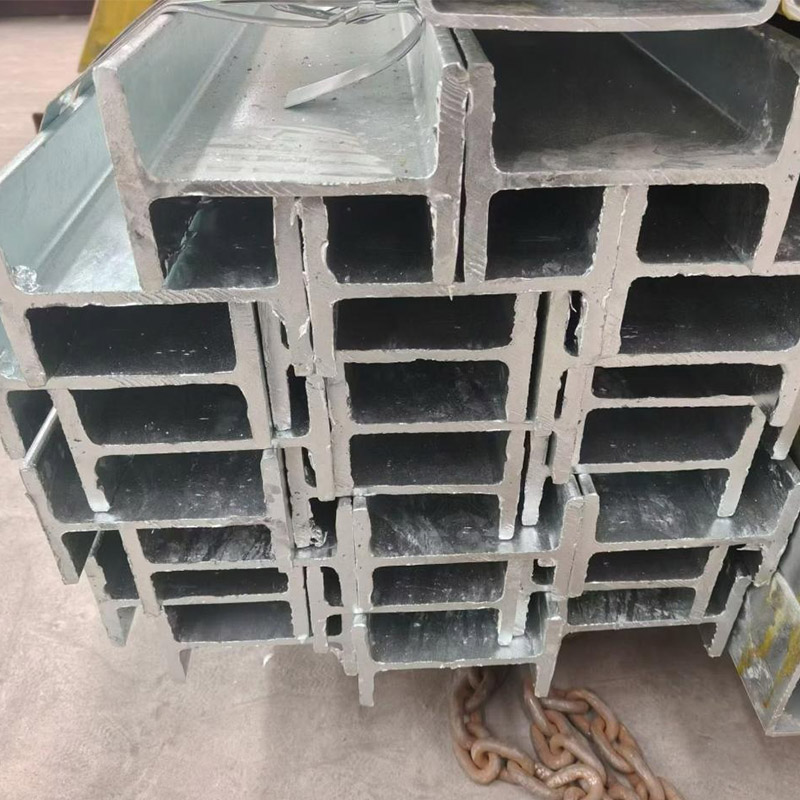

Steel Beam
