Checkered Steel Plate

Tianjin Shunchen Industrial is a leading steel product manufacturer with 12 years of export experience, specializing in multi-functional structural steel materials. Our Tianjin production base is equipped with 3 fully automatic embossing rolling production lines and a national-level material testing laboratory, focusing on R&D and production of hot-rolled & cold-rolled anti-slip checkered plates applicable to heavy-load industrial, coastal humid, municipal public and vehicle manufacturing scenarios.

Different from smooth flat steel plates without anti-slip texture, our checkered steel plates form integrated raised patterns (diamond, lentil, one-bar, three-bar) through synchronous rolling molding, with firmly combined patterns that never peel or fall off. We adopt precise thickness and pattern height closed-loop control technology. Our QC supervisor with 10 years of metal plate testing experience supervises full-process inspection for every batch, ensuring pattern height deviation ≤0.1mm, stable thickness tolerance, crack-free and pit-free surface without delamination. All products comply with GB, ASTM, EN and JIS standards, and can provide complete mill test certificates (MTC EN 10204 3.1) and third-party SGS inspection reports.

Real-world Performance Testing

1. Anti-slip Friction Coefficient Test (Third-party SGS Test)

Test Standard: ASTM E303-22 Slip Resistance Test

Test Conditions: Dry & wet dual working conditions, 20kg test load, standard rubber friction head

Test Samples:

Ordinary flat carbon steel plate

3mm diamond Q235B checkered plate

6mm lentil Q355B checkered plate

Key Findings:

Ordinary flat plate wet friction coefficient: 0.23, extremely slippery with high fall risk

Q235B diamond plate wet friction coefficient: 0.58, anti-slip performance increased by 152%

Q355B lentil plate wet friction coefficient: 0.67, anti-slip performance increased by 191%

2. Load Bearing & Bending Mechanical Verification

Tested under standard room-temperature compression, core mechanical indicators as follows:

Q235B checkered plate: Tensile strength ≥375MPa, yield strength ≥235MPa

Q355B checkered plate: Tensile strength ≥470MPa, yield strength ≥355MPa

The embossed pattern forms a reinforced structure, greatly improving overall plate rigidity and effectively reducing bending deformation under uniform heavy load, suitable for long-span platform laying.

3. Neutral Salt Spray Corrosion Resistance Test

Test Standard: ASTM B117 Neutral Salt Spray Test

Test Conditions: Continuous spraying of 5% sodium chloride solution

Test Results:

Uncoated ordinary flat plate: Red rust appears after 120 hours

Original hot-rolled black checkered plate: No obvious rust after 320 hours

Custom hot-dip galvanized checkered plate: No rust or coating damage after 1800 hours

Real-world User Scenarios & Verified Cases

Case 1: Port Cargo Platform Renovation Project (Singapore Port Logistics Co., Ltd.)

Problem: Original flat steel platforms were extremely slippery on rainy days, causing frequent slip accidents; thin steel plates deformed severely under heavy container loads, requiring annual replacement and incurring high safety management costs.

Solution: Adopt 6mm Q355B lentil checkered plate, customized hot-dip galvanized anti-corrosion treatment to adapt to coastal salt fog environment.

Result: After 8 years of outdoor port service, no large-area deformation occurred, surface anti-slip performance remained stable, slip accident rate dropped by 90%, annual platform maintenance cost reduced by 72%. Annual purchase volume reaches 1100 tons, maintaining 6 consecutive years of stable cooperation.

Case 2: Factory Workshop Stair & Walkway Project (Zhejiang Heavy Equipment Manufacturing Co., Ltd.)

Industry: Industrial factory construction

Problem: Original cement stair treads wear rapidly, easily accumulate mechanical oil and become slippery; imported anti-slip plates have long delivery cycles and high procurement costs.

Solution: Adopt 3mm Q235B diamond checkered plate, custom fixed-size cutting for on-site welding installation.

Result: Oil stains are easy to clean, stable anti-slip effect under oily and humid workshop environment, service life extended from 2 years to 9 years, material cost reduced by 45% compared with imported alternatives. The factory fully adopted our checkered plates for all passages and stairs in Phase II expansion.

Case 3: Urban Bus Station & Pedestrian Overpass Municipal Project (Central China Municipal Construction Group)

Industry: Municipal public construction

Problem: Municipal pedestrian passages require both anti-slip function and unified landscape aesthetics; ordinary anti-slip plates have uneven patterns and poor flatness, failing municipal acceptance standards.

Solution: Cold-rolled fine one-bar checkered plate with uniform pattern height, customized color paint coating to match urban landscape design.

Result: Uniform surface texture, reliable anti-slip performance under heavy pedestrian flow and rainy weather, passed municipal one-time acceptance. Widely promoted for pedestrian overpasses, bus platforms and park walkways across multiple cities.

Authentic Customer Reviews

"Coastal ports face severe salt fog and heavy load conditions for steel flooring. Your Q355B lentil checkered plates deliver strong load capacity and reliable anti-slip performance, greatly boosting port operation safety. Batch quality is consistent and delivery is always on schedule."

—— Mark Thompson, Infrastructure Manager, Singapore Port Logistics Co., Ltd.

"We covered all factory stairs and workshop walkways with diamond checkered plates. The anti-slip effect works perfectly even with machine oil on the surface, cutting our annual maintenance expenses significantly."

—— Liu Gang, Plant Director, Zhejiang Heavy Equipment Manufacturing Co., Ltd.

"Municipal projects impose strict standards on material appearance and safety indicators. Your checkered steel plates feature neat patterns, stable mechanical properties and complete inspection documents, becoming our designated anti-slip flooring material for all municipal traffic projects."

—— Huang Ming, Chief Engineer, Central China Municipal Construction Group

Verified Product Parameters

(1) General Execution Standards

(2) Core Technical Parameters

(3) Chemical Composition (wt%)

(4) Mechanical Properties

Core Advantages

1. Authentic Test Data, Fully Traceable Performance: All anti-slip friction, load-bearing and corrosion resistance data derive from SGS third-party laboratory tests and long-term on-site engineering verification, full test reports provided for project acceptance.

2. Superior Anti-slip & Heavy Load Performance: Integrated embossed patterns never fall off; friction coefficient far exceeds flat steel. Pattern reinforcement improves plate rigidity, resisting bending deformation under heavy loads.

3. Stable Forming Process & Uniform Surface Quality: One-step synchronous rolling molding, consistent pattern height, flat base without warping, easy for cutting, welding and secondary processing.

4. Diversified Custom Surface Solutions: Support raw black plate, galvanized, painted anti-rust treatment, matching indoor, outdoor, coastal salt fog, oily workshop and other complex working environments.

5. Complete Qualifications & Stable Supply Capacity: ISO9001:2015 certified, full set of export customs clearance and engineering acceptance documents; large spot inventory to guarantee fast delivery.

Suitable For

· Port & Logistics: Cargo platform flooring, container yard walkways, truck compartment anti-slip floors

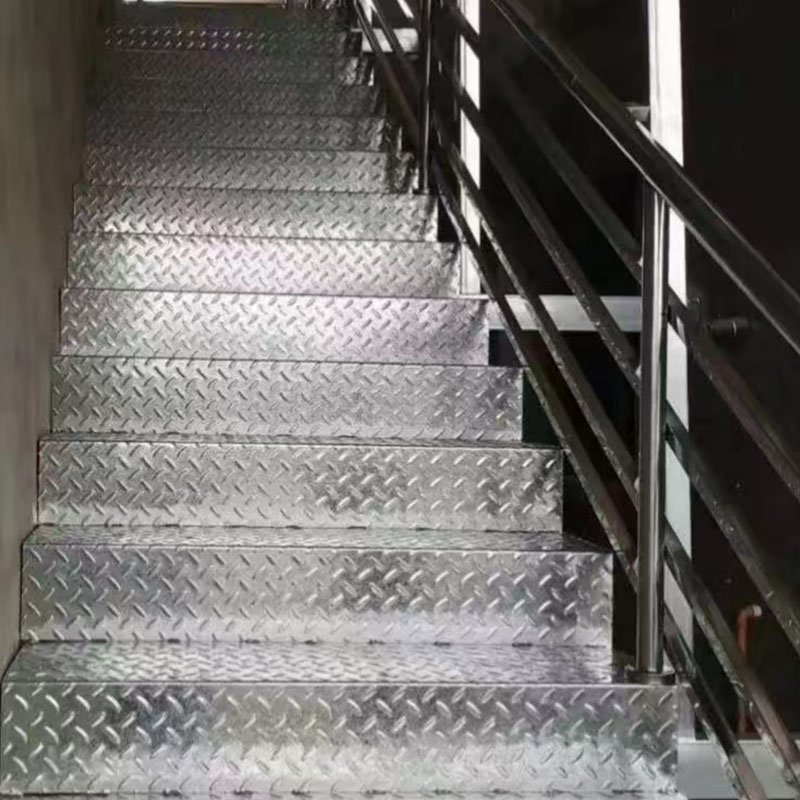

· Industrial Factory: Workshop stair treads, equipment operation platforms, factory isolation passages

· Municipal Construction: Pedestrian overpass flooring, bus station platforms, park landscape walkways

· Construction Engineering: Building stair plates, underground garage ramps, temporary construction walkways

· Vehicle Manufacturing: Truck, trailer, engineering vehicle chassis anti-slip flooring

· Agriculture & Machinery: Farm equipment operating platforms, breeding house anti-slip floors

· Ship & Offshore: Ship deck walkways, small offshore equipment platforms

Why Choose Tianjin Shunchen?

Looking for durable anti-slip checkered steel plates for port, factory and municipal construction projects? Choose Tianjin Shunchen Industrial, a professional checkered plate manufacturer with 12 years of export experience, with products verified by global engineering projects.

We maintain 4,000 tons of standard specification spot inventory all year round, supporting delivery within 3–7 days. Our professional technical team provides customized solutions for pattern, thickness and anti-corrosion treatment according to your project environment. Factory direct sales eliminate intermediate links, delivering competitive prices and stable batch consistency. Contact us now to get free samples and detailed quotations!

Real Product & Shipment Gallery

Production & Quality Inspection

Fully automatic embossing rolling production line

Online thickness & pattern height detector (100% batch sampling inspection)

Friction coefficient testing machine

Neutral salt spray aging test equipment

Product Display

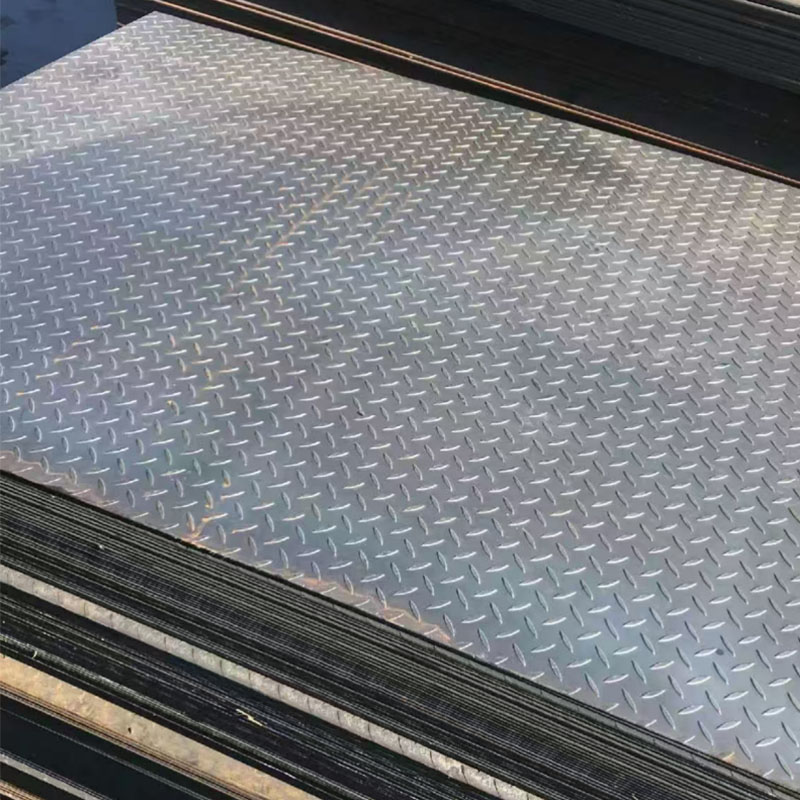

3mm diamond pattern hot rolled checkered plate

6mm lentil Q355B anti-slip plate

Cold rolled one-bar fine pattern checkered plate

Hot-dip galvanized anti-corrosion checkered plate

Shipment & Packaging

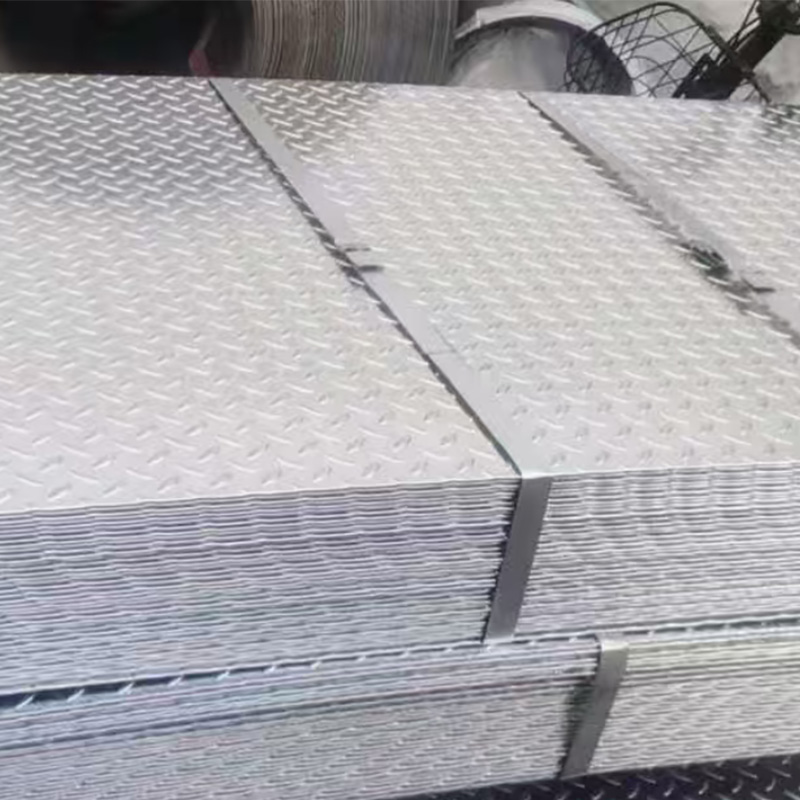

Standard export packaging: Anti-rust oil + waterproof kraft paper + wooden pallet fixed with steel strips

Custom packaging printed with customer logo is available

Container loading standard: 20ft container ≈23 tons; 40ft container ≈46 tons

Complete shipment documents: Bill of lading, commercial invoice, MTC, third-party SGS inspection report

Customer Application Scenarios

Singapore port cargo platform project

Zhejiang heavy machinery factory workshop walkway project

Central China municipal pedestrian overpass project

Engineering vehicle compartment flooring supporting project
