Color Coated Steel Coil

Tianjin Shunchen Industrial is a leading steel product manufacturer with 12 years of export experience, specializing in high-performance coated steel materials. Our production base in Tianjin is equipped with multiple fully automated color coating production lines and a national-level material testing laboratory, focusing on the R&D and production of color coated steel coils suitable for outdoor exposure, interior decoration, home appliances and industrial manufacturing scenarios.

Different from ordinary painted steel products with poor adhesion and weak anti-aging performance, our color coated steel coils use high-quality hot-dip galvanized, galvalume base plates, matched with high-grade polyester (PE), silicon modified polyester (SMP), high-durability polyester (HDP) and fluorocarbon (PVDF) coating systems. Strict multi-pass surface pretreatment + roller coating + high-temperature curing processes are adopted to form a dense and uniform protective coating. Our senior quality control team with years of industry experience conducts full-process tracking and inspection for each batch of products, ensuring coating thickness deviation ≤±2μm, color difference ΔE ≤2.0, and coating adhesion reaching 0-level standard. All products comply with GB, ASTM, EN and JIS standards, and can provide complete mill test certificates (MTC EN 10204 3.1) and third-party SGS inspection reports.

Real-world Performance Testing

1. Accelerated Weathering Aging Test (Third-party SGS Test)

Test Standard: ASTM G154, ISO 11507 (UV Accelerated Aging Test)

Test Conditions: UV irradiation + humidity cycle, continuous test for 3000 hours

Test Samples:

Ordinary low-grade painted coil

Standard PE color coated coil

High-end PVDF color coated coil

Key Findings:

Ordinary painted coil: Severe color fading, coating blistering and partial peeling

PE color coated coil: Slight color change, no blistering or peeling — service life 3 times longer than ordinary painted coil

PVDF color coated coil: Almost no color difference, intact coating — service life 8 times longer than ordinary painted coil

2. Salt Spray Corrosion Resistance Test

Test Standard: ASTM B117

Test Conditions: 5% neutral salt spray, continuous spraying

Test Results:

Ordinary painted coil: Red rust appears after 500 hours

SMP color coated coil: No rust after 2000 hours

PVDF color coated coil: No rust or coating damage after 5000 hours

3. Coating Mechanical Property Test

Tested in accordance with national and international standards, core performance indicators are as follows:

· Coating adhesion: 0 grade (no peeling after grid cutting)

· Impact resistance: 90kg·cm, no coating cracking

· T-bending performance: T=2, no coating cracking

· Hardness: ≥2H (pencil hardness)

The composite structure of base plate + functional coating realizes the perfect combination of flexibility, impact resistance and corrosion resistance, adapting to bending, stamping and other deep processing requirements.

Real-world User Scenarios & Verified Cases

Case 1: Large Industrial Factory Roof & Wall Cladding Project (Southeast Asia Construction Engineering Co., Ltd.)

Industry: Industrial construction

Problem: The original ordinary painted steel sheets faded seriously and rusted within 2 years in tropical high temperature, high humidity and strong rainfall environment. Frequent replacement affected normal factory production and increased maintenance costs.

Solution: Adopt our SMP silicon modified polyester color coated coil, base plate galvalume steel, thickness 0.5mm, customized weather-resistant color.

Result: After 7 years of outdoor use, the color is uniform without obvious fading, no rust or coating peeling on the plate. The service life is extended from 2 years to more than 10 years, reducing later maintenance cost by 72%. The annual procurement volume reaches 1200 tons, and the two parties have maintained long-term cooperative relations.

Case 2: Modern Commercial Park Exterior Decoration Project (Domestic Urban Construction Group)

Industry: Commercial building construction

Problem: The facade decorative metal materials of commercial parks have high requirements for color consistency, surface texture and anti-fouling performance. Conventional products have uneven color and easy to accumulate dirt, which affects the overall aesthetic of the building.

Solution: Select high-quality HDP high weather-resistant polyester color coated coil, with high-gloss and matte customized surface treatment, strictly control color difference and flatness.

Result: The overall facade of the building has uniform color and strong three-dimensional sense. The coating has excellent anti-fouling performance and is easy to clean. It has passed the acceptance of the construction party at one time. The product has stable performance after 5 years of use, and has become the designated decorative material for the group's subsequent park projects.

Case 3: Household Appliance Shell Production Project (East China Home Appliance Manufacturing Co., Ltd.)

Industry: Home appliance manufacturing

Problem: Ordinary coated steel sheets are prone to coating peeling and scratch damage during stamping and bending processing, with high product rejection rate, and the surface is not resistant to daily friction.

Solution: Use PE system color coated coil with excellent deep processing performance, hot-dip galvanized base plate, optimized coating flexibility formula.

Result: The product adapts to complex stamping and bending processes, the rejection rate of finished shells drops from 6.5% to 1.1%. The surface is scratch-resistant and easy to clean, helping the company improve product quality and expand market share.

Authentic Customer Reviews

"In tropical coastal areas, steel building materials face severe corrosion and sun exposure. Your SMP color coated coils have maintained good condition for many years, with stable quality and reliable delivery, which is our preferred material for factory construction."

—— Thomas Carter, Project Manager, Southeast Asia Construction Engineering Co., Ltd.

"We use color coated coils for commercial building exterior decoration. Your products have uniform color, delicate surface and excellent weather resistance. The technical team can also provide color and process customization according to design requirements, very professional."

—— Wang Lin, Procurement Director, Domestic Urban Construction Group

"Deep processing performance is the key for home appliance steel materials. Your color coated coils have good flexibility and adhesion, effectively reducing processing losses. We have been cooperating stably for many years."

—— Chen Tao, Production Supervisor, East China Home Appliance Manufacturing Co., Ltd.

Verified Product Parameters

(1) General Execution Standards

(2) Core Technical Parameters

(3) Base Plate Chemical Composition (wt%)

(4) Mechanical Properties of Base Plate

Core Advantages

1. Test Data Authentic & Reliable: All weather resistance, corrosion resistance and processing performance data come from authoritative third-party tests and long-term field application verification, with complete test reports for inquiry.

2. Superior Anti-aging & Anti-corrosion Performance: Multi-grade coating systems are optional. PVDF fluorocarbon coating can resist ultraviolet rays, acid rain and salt spray for a long time, with color retention performance far exceeding ordinary painted materials.

3. Excellent Deep Processing Performance: The coating has strong adhesion and flexibility, not easy to crack or peel during bending, stamping and slitting, suitable for secondary processing in various industries.

4. Rich Customization Capabilities: Support customized colors, gloss, surface patterns, base plate materials and coating thickness to meet personalized design and usage requirements of different projects.

5. Complete Qualifications & Stable Supply: Passed ISO9001:2015 quality system certification, complete export documents. Large spot inventory ensures stable batch quality and timely delivery.

Suitable For

· Construction Industry: Color steel roof panels, wall panels, enclosure materials for industrial factories, logistics parks, large venues, residential buildings and villas

· Architectural Decoration: Building exterior wall decoration, ceiling, interior partition, metal decorative panels for commercial complexes

· Home Appliance Industry: Shell materials for refrigerators, washing machines, air conditioners, water heaters and small household appliances

· Transportation Industry: Carriage interior decoration, container wall panels, road guardrail decorative plates

· Other Industries: Solar support outer plates, warehouse shelves, advertising boards, light steel structure accessories

Why Choose Tianjin Shunchen?

Looking for a cost-effective and durable color coated steel coil supplier for construction, home appliances and decoration projects? Choose Tianjin Shunchen Industrial. With 12 years of export experience, we are a professional color coated steel coil manufacturer.

We keep a large stock of conventional specifications all year round, supporting delivery within 3-7 days. Our professional technical team provides one-stop solutions including material selection, color matching and process optimization according to your usage scenarios. Factory direct sales eliminate intermediate links, with competitive prices and stable product quality. Contact us now to get free samples and detailed quotations!

Real Product & Shipment Gallery

Production & Quality Inspection

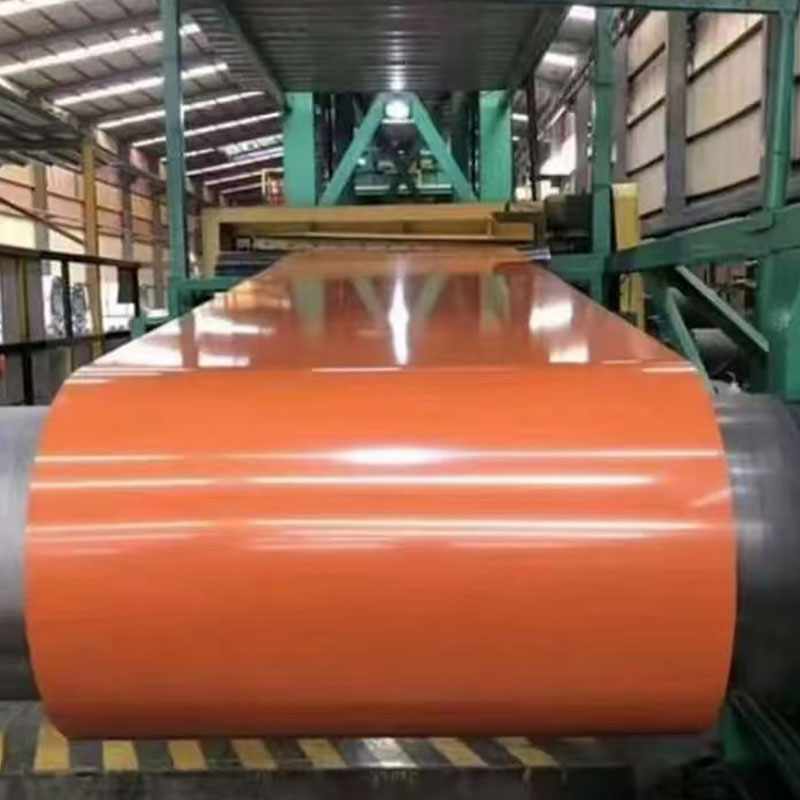

Fully automatic continuous color coating production line

Online coating thickness gauge (100% on-line detection)

Color difference spectrophotometer (strict color calibration)

Salt spray & UV aging testing equipment

Product Display

PE system conventional color coated steel coil

SMP weather-resistant color coated steel coil

PVDF fluorocarbon high-end color coated coil

Embossed/printed customized color coated coil

Shipment & Packaging

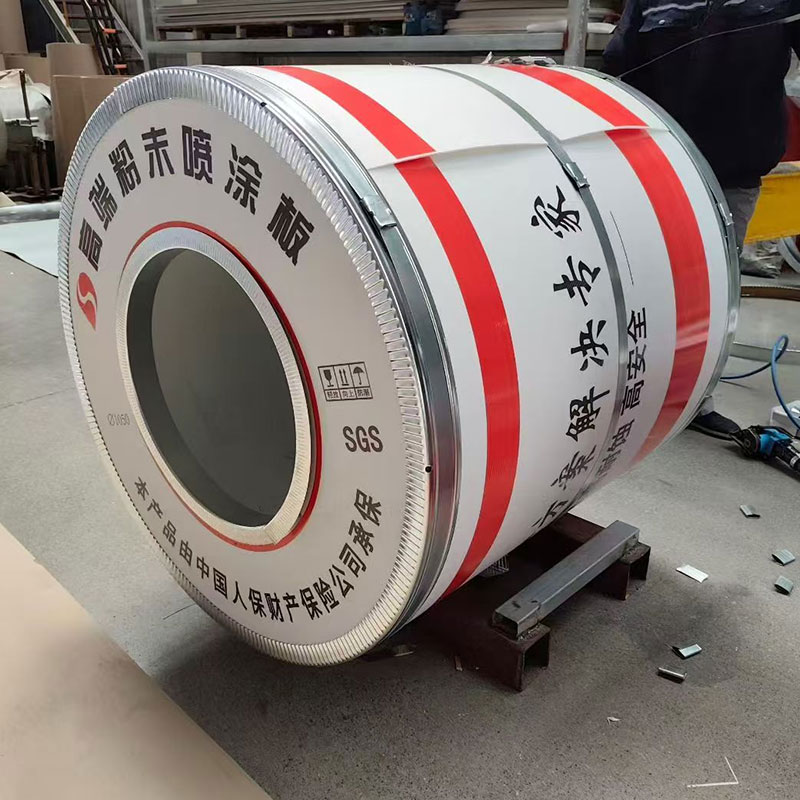

Standard export packaging: Waterproof film + kraft paper + steel strapping protection

Custom logo packaging is supported

Container loading standard: 20ft container ≈23 tons; 40ft container ≈46 tons

Complete shipping documents: Bill of lading, commercial invoice, MTC, third-party inspection report

Customer Application Scenarios

Industrial factory roof & wall project

Commercial building exterior decoration project

Household appliance shell production project

Container & logistics facility cladding project
