Reshaping the construction and manufacturing industry with millimeter-level precision. Featuring cold bending, laser-arc hybrid welding, and full-specification customization for high-end engineering applications.

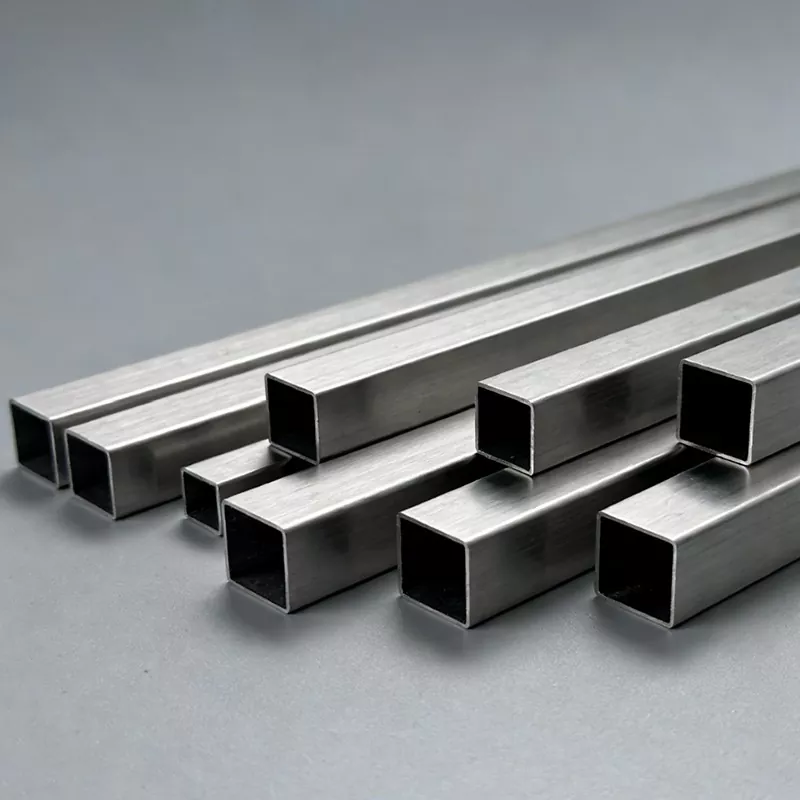

In the field of construction and manufacturing, Sharp Corner Square Tube is reshaping the industry pattern with unique advantages. Shunchen Industry deeply cultivates this market segment, and through technological innovation and process breakthroughs, this seemingly ordinary profile radiates multiple values. Explore our wider range of special-shaped steel solutions.
The company adopts advanced technology such as cold bending forming and laser-arc composite welding to reduce weld deformation by 70%, effectively eliminating stress concentration and ensuring product quality. We support full-specification customization; our digital flexible production mode greatly shortens the delivery cycle and perfectly adapts to various complex scenarios such as building curtain walls, bridges, and super high-rises. With 12 strict quality inspections across the whole process, a product qualification rate as high as 99.8%, and 57 patented technologies jointly developed with universities, we achieve both cost reduction and efficiency. With construction efficiency increased by 40%, our comprehensive cost advantages are evident, making us your trusted partner.
Technical Specifications
| Category | Technical Parameters | Explain |
|---|---|---|
| Section Size | Side length (A×B) | Square tube: common spec 10×10mm ~ 200×200mm; Rectangular tube: common spec 10×20mm ~ 150×300mm. Size tolerance: ordinary ±0.5 mm; precision ±0.2 mm (extrusion molding precision is higher). |
| Radius of interior angle (R) | Core features: R≤0.5mm (different from rounded square tube R≥1.0mm), some high-precision products can achieve R≤0.3mm. | |
| Wall Thickness (t) | Conventional wall thickness | 0.5mm ~ 12mm; special needs can be customized 0.3mm thin wall or 15mm thick wall. |
| Wall thickness tolerance | Wall thickness ≤2mm: Tolerance ±0.05mm ~ ±0.1mm; Wall thickness 2~6mm: Tolerance ±0.1mm ~ ±0.2mm; Wall thickness >6mm: Tolerance ±0.2mm ~ ±0.3mm. | |
| Length Spec | Cut lengths | Conventional 3m, 6m, 9m, 12m; can be customized according to needs for any length from 0.5m to 18m. |
Applications and Cases

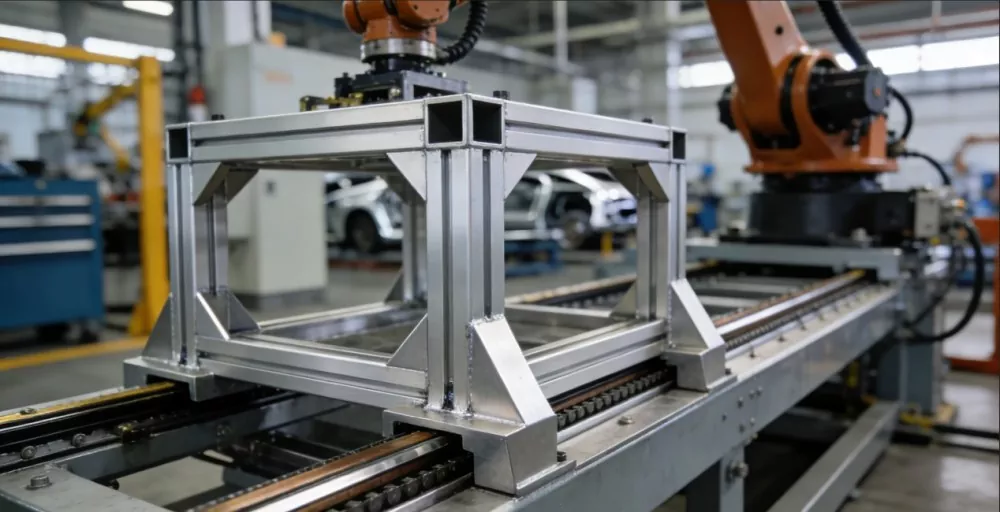

Automotive Welding Robot Base Frame
In the field of Sharp Corner Square Tube manufacturing, assembly errors of 0.1 mm often determine the upper limit of equipment performance. A welding robot base frame using 30×30×2mm aluminum alloy sharp-angle square tube is deployed in an automobile factory. The cross-section design is optimized by finite element analysis, making the right angle a natural positioning reference.
This design allows the guide rail, sensor, and other components to achieve a true sense of "zero clearance" installation. While reducing the equipment weight by 12%, the repeated positioning accuracy is stabilized within 0.1 mm, ensuring the stability of welding operations.

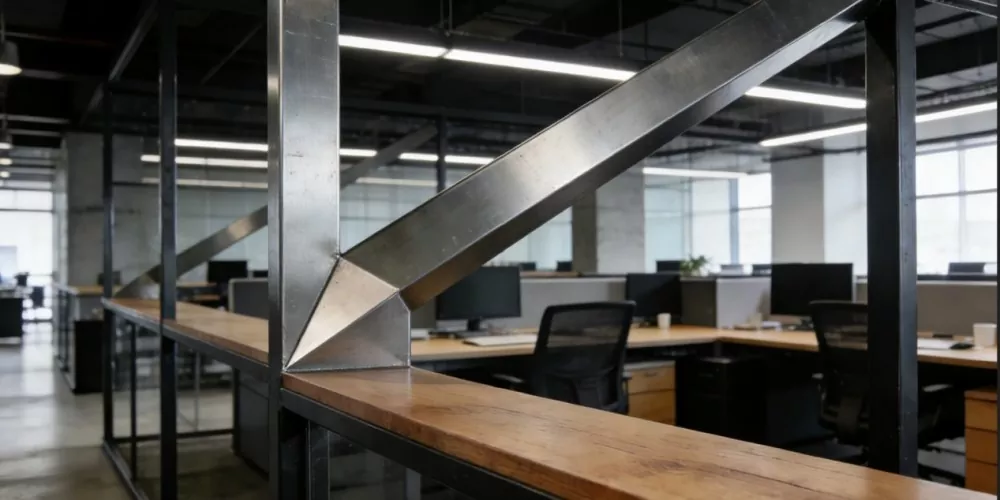

Modern Furniture Structural Framework
The pursuit of industrial aesthetics in the modern furniture market has spawned new material application scenarios. 25×25×0.8mm galvanized square tube after 45° bevel splicing, with a cold metal wire drawing surface, forms a strong visual contrast with wood and glass materials.
This design not only makes the office desk frame present a sharp three-dimensional feeling but also controls the bending joint gap within 0.2 mm through the rapid prototyping capability of the laser pipe cutter, increasing batch production efficiency by 40%. See our standard square tube and custom steel profiles options for related projects.
Our Industrial Advantages
Shunchen Industrial's advantages are based on hardcore data: angle error ≤±0.5°, section flatness ≤0.2mm processing accuracy, Q690 high-strength steel, Q345FR refractory steel, and other special material selections, along with a digital flexible production line with an annual production capacity of 150,000 tons.
The 12 quality inspection procedures across the whole process increased the product qualification rate to 99.8%. With 57 independent R&D patents, the technical feasibility of the sharp corner square tube is continuously verified in complex engineering scenarios such as bridges and super high-rise buildings. As a factory-direct supplier, we offer competitive pricing and strict quality control for your bulk orders.
Frequently Asked Questions
What is the difference between a sharp corner square tube and a regular square tube?
A standard square tube typically has a rounded internal corner with a radius (R) of ≥1.0mm. Our Sharp Corner Square Tube features a much tighter internal radius, usually R≤0.5mm, and high-precision models can achieve R≤0.3mm. This sharper corner allows for seamless, zero-clearance assembly and precise positioning in complex structures.
Can you customize the dimensions and materials?
Yes. We support full-specification customization. Side lengths can range from 10×10mm to 200×200mm for square tubes, and 10×20mm to 150×300mm for rectangular tubes. Wall thickness ranges from 0.3mm to 15mm. We offer materials like Q235B, Q345B, Q690 high-strength steel, and Q345FR refractory steel. You can view our special shaped steel options for more details.
What are the main applications for this product?

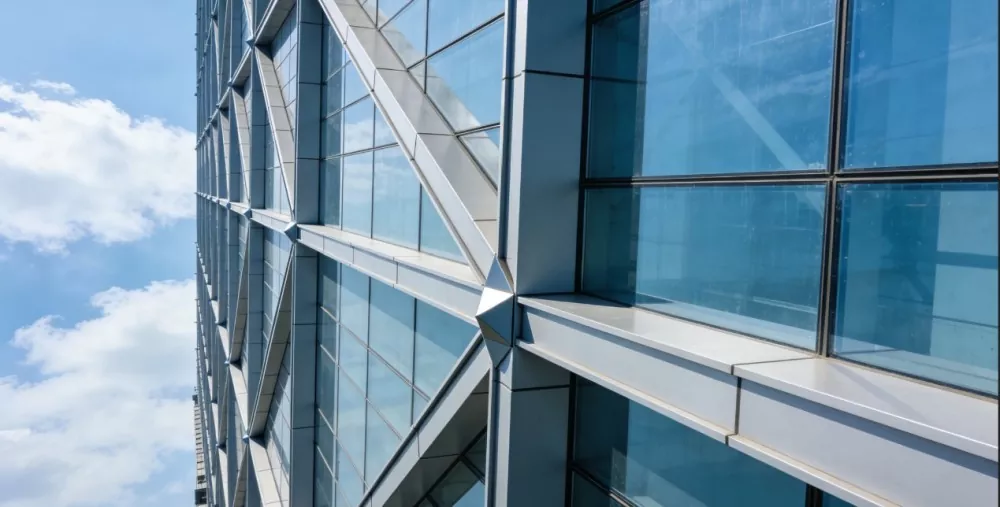

Due to its high precision (tolerance as low as ±0.2mm) and structural strength, it is widely used in building curtain walls, bridge engineering, automotive welding robot bases, high-precision equipment frames, and modern furniture designs.
How do you ensure the welding quality and anti-deformation?
We utilize advanced laser-arc composite welding technology, which reduces weld deformation by 70% compared to traditional welding. Every product undergoes 12 strict quality inspection procedures, ensuring a 99.8% qualification rate and eliminating stress concentration.
What is your production capacity and delivery time?
With our digital flexible production line, we have an annual production capacity of 150,000 tons. For standard specifications in stock, delivery is fast. For customized orders, our optimized digital flexible production mode significantly shortens the delivery cycle to meet your project timelines. Contact us for a factory-direct quotation.
Request a Quote for Sharp Corner Square Tube
Provide us with your required dimensions, steel grade, and tolerance requirements. Our engineering team will review your project and provide a factory-direct quotation and technical solution.
