X folding container house
Shunchen Industry is a professional manufacturer and source factory in China specializing in the production of X folding container house. It focuses on customizing, producing, and supplying high-quality X folding container house. Shunchen offers direct purchasing and bulk quotation cooperation services. X folding container house have completely solved the industry pain points of traditional temporary buildings in terms of long construction period, high cost, non-reusable nature, and poor adaptability. X folding container house have core advantages such as strong portability, no need for wet work during installation, low carbon and environmental protection, strong durability, and fire and heat resistance. They also support personalized customization. We welcome all customers to consult, inquire, and negotiate for bulk orders for long-term cooperation.
Key Selling Points
Both X-shaped folding rooms have the common advantages of occupying a small area after folding, low transportation costs, quick installation, no need for complex foundations, reusable stacking, and completeSupporting facilities. Among them, the X-shaped type adopts a cross-loading structure, which is stable against wind, less prone to deformation, and has universal accessories,suitable for construction site temporary buildings, frequent turnover, and multi-row assembly scenarios； the Z-shaped folding operation is more labor-saving, has better sealing and waterproof performance, and has a simple appearance, making it more suitable for emergency accommodation, cultural tourism housing, temporary shops, etc.
Technical Specifications
The core specifications cover both conventional engineering requirements and customized needs. The following are the standard conventional specifications. Special sizes can be customized according to customer requirements.
| X type/Z-type folding house standard technical specifications | |
| I. Basic Overall Parameters | |
| Expanded external dimensions | Length 6000mm × Width 3000mm × Height 2800mm (Standard single carton) |
| Dimensions after folding | Length 6000mm × Width 3000mm × Thickness 420–450mm |
| Building area | Approximately 18 square meters |
| Overall weight | Approximately 1200–1400 kg |
| Number of installers/duration | Setup can be completed in 20-30 minutes by 2-3 people, without the need for large machinery. |
| Foundation requirements | Only a level and hardened surface is required; no concrete foundation is needed. |
| II. Main Frame (Galvanized Steel) | |
| Main frame material | Hot-dip galvanized square tubing, corrosion and rust resistant, can be repeatedly disassembled and reused more than 50 times. |
| Connecting hinges/rotor | Thickened galvanized hinges, wear-resistant and fatigue-resistant, suitable for high-frequency folding. |
| Overall load-bearing capacity | Uniformly distributed load on the floor ≥ 2.0 kN/m² |
| Wind/earthquake resistance rating | Wind resistance ≥ level 8, seismic fortification intensity 7 degrees |
| III. Walls, Roof, and Floors | |
| Wall panels/ceiling panels | 50mm/75mm color steel rock wool/polyurethane sandwich panels, fireproof, heat-insulating, and soundproof. |
| floor | Cement fiber pressure board + anti-slip patterned steel plate / multi-layer solid wood flooring, waterproof and wear-resistant |
| Waterproofing process | The entire box is sealed with glue, and the eaves and joints are waterproofed to prevent rainwater leakage. |
| IV. Door and Window Configuration (Standard Configuration) | |
| front door | Steel security single-opening door with lock and peephole |
| window | PVC/aluminum alloy sliding windows with tempered glass and safety railings |
| Sealing performance | It meets the standards for airtightness and watertightness, and is dustproof and windproof. |
| V. Electrical System (Fully Pre-installed) | |
| Built-in circuit | National standard circuits: distribution boxes, switches, LED lights, sockets, concealed wiring |
| Supported voltage | Supports 220V/380V (customization available according to customer's country). |
| Safety standards | The wiring has been flame-retardant treated and meets the safety standards for electrical use in temporary buildings. |
| VI. Transportation and Stacking Performance | |
| Transportation capacity | Each vehicle can carry 8–12 sets of folding finished products, with low sea/land transportation logistics costs. |
| Stacking capability | When not in use, the shelves can be stacked vertically up to 3 layers, significantly saving storage space. |
| Lifting adapter | Standard lifting points are provided, allowing for forklifts and cranes to lift the entire unit. |
| VII. Differences between X type and Z-type structures | |
| X-shaped folding room | The cross-bracing structure provides stronger frame rigidity, even stress distribution during folding, and resistance to twisting and deformation over long-term use. The small gaps between the boX type components make it suitable for row or multi-story assembly, making it a primary model for temporary construction sites. |
| Z-shaped folding room | The staggered, overlapping folding structure reduces hinge resistance and makes operation easier. The tightly interlocking panels provide superior overall sealing, waterproofing, and dustproofing. The lower center of gravity after folding enhances stability during long-distance transport and hoisting, while maintaining a simple and neat appearance. |
| VIII. Usage Environment and Lifespan | |
| Applicable temperature | -20℃ ~ +50℃ |
| Service life of main frame | 8-10 years under normal operating conditions |
| Applicable Scenarios | Construction site dormitories/offices, emergency housing, medical points, scenic area accommodations, temporary shops, and outdoor campsites, etc. |
Application Areas and Cases
The X/Z type folding rooms are easy to set up and can be flexibly transported. They are widely used in four major fields: construction site temporary buildings, emergency resettlement, cultural tourism supporting facilities, and temporary commercial use.
1. Construction Engineering Field

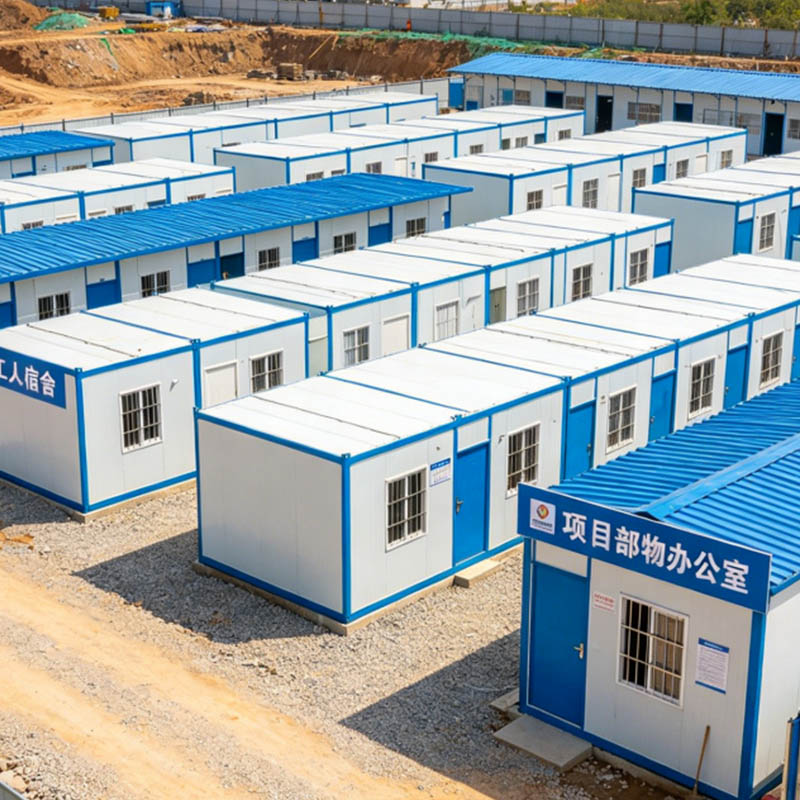

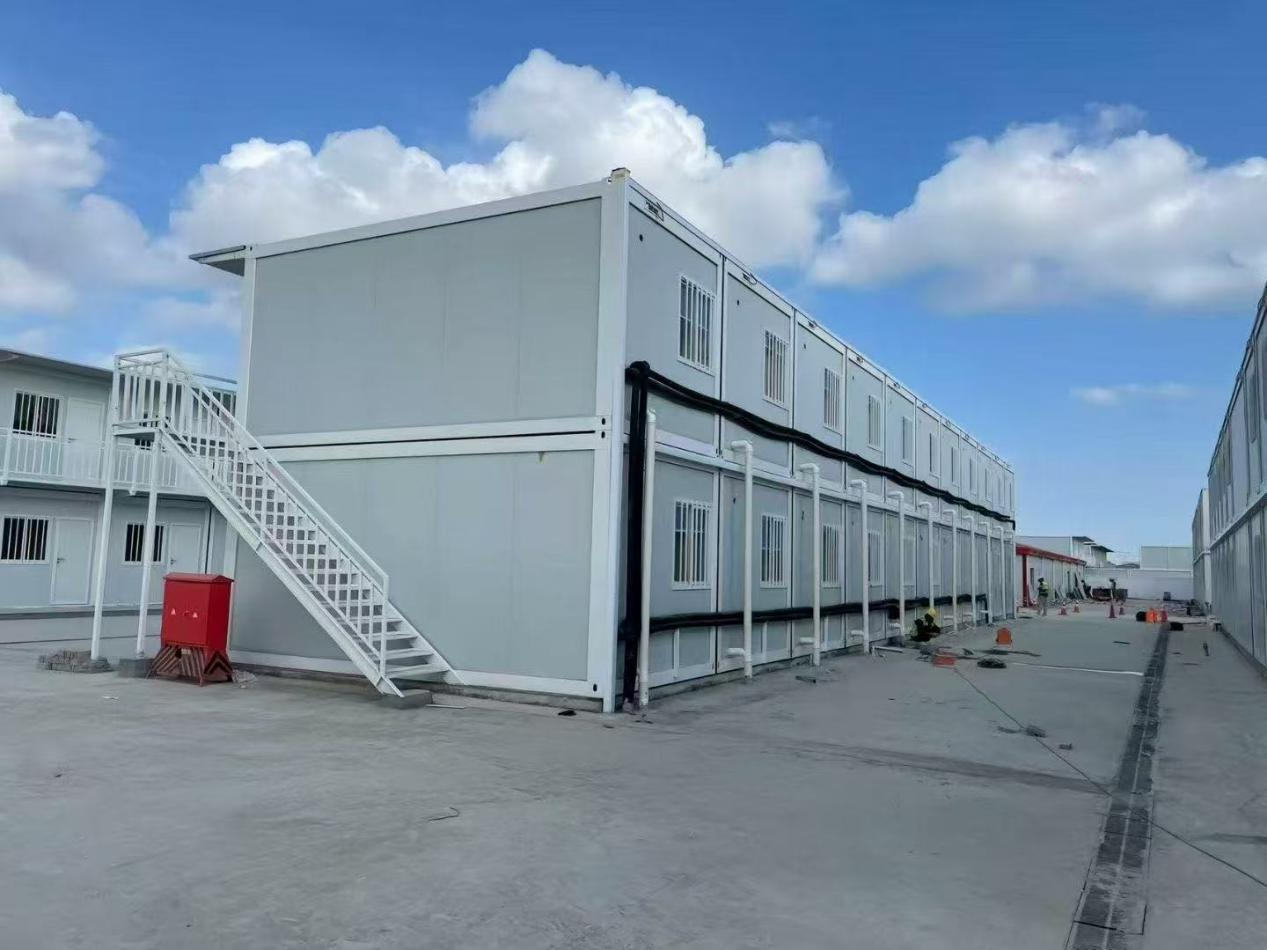

Application: Workers' dormitories, project department offices, guard rooms, material storage rooms
2. Emergency Relief Field

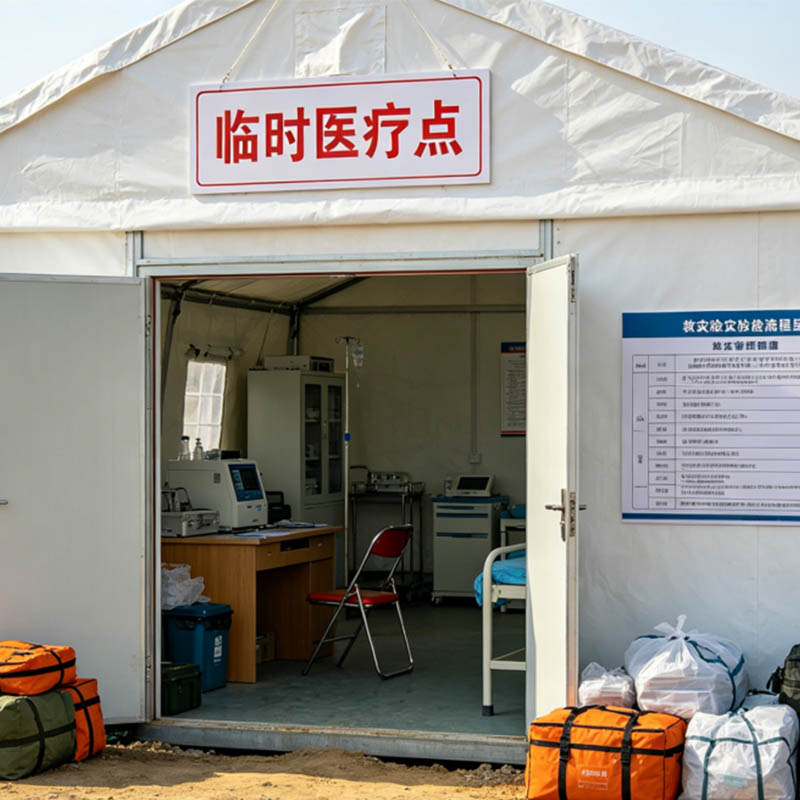

Application: Post-disaster resettlement housing, temporary medical points, command and duty rooms
3. Cultural Tourism and Leisure Field

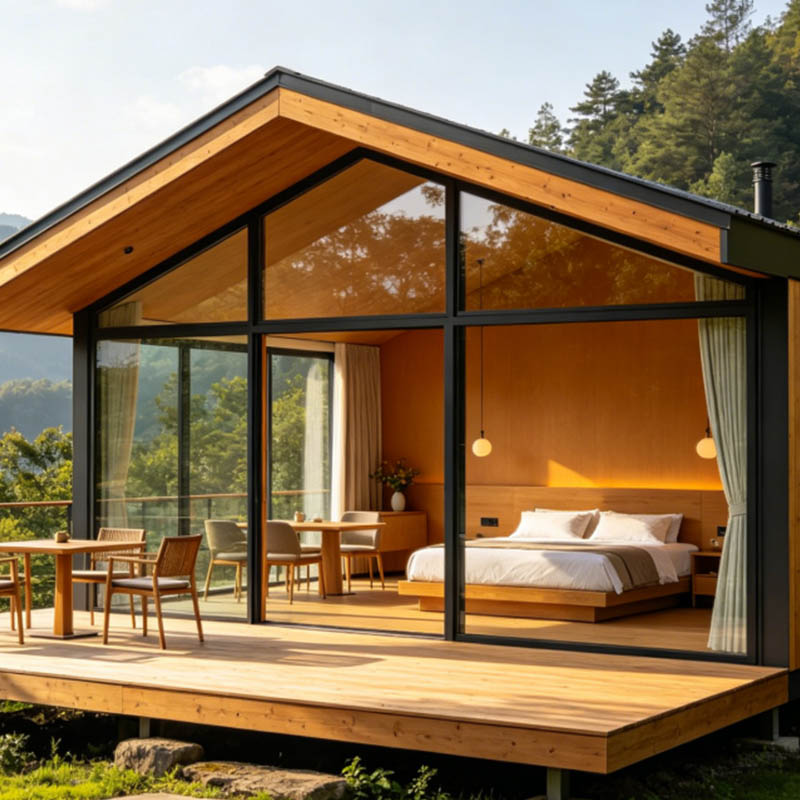

Application: Camping hostels, scenic area rest areas, mountain temporary stations
4. Temporary Commercial/Public Field

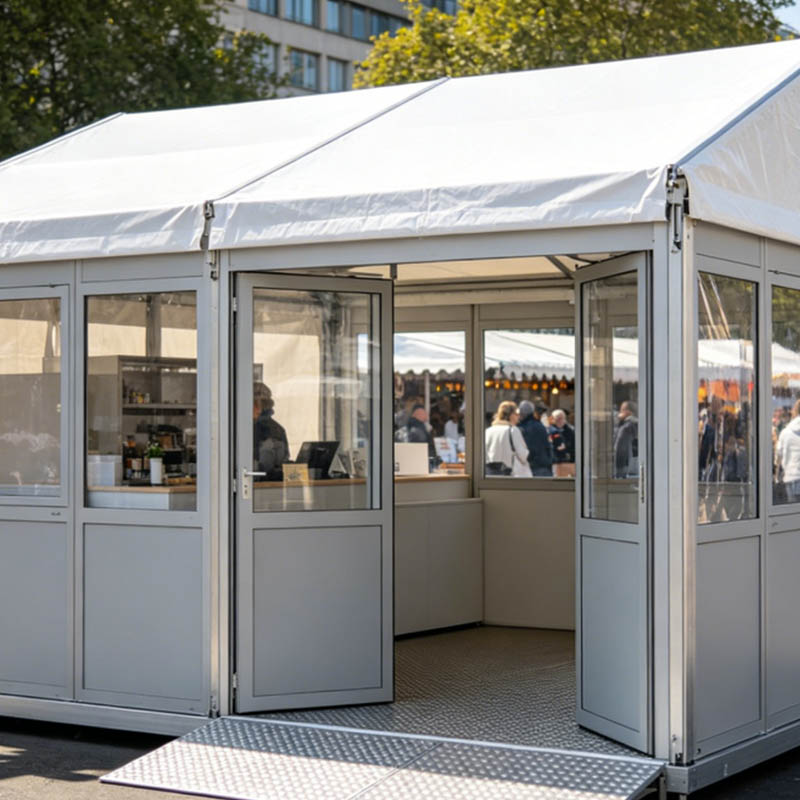

Application: Exhibition booths, temporary shops, outdoor duty posts
Our advantages
In response to the common problems faced by ordinary folding houses, traditional prefabricated houses, and packing boxes, such as high shipping costs, slow installation, easy damage, inability to be customized, poor after-sales service, etc., Shunchen Industrial, as a professional manufacturer and powerful factory in China specializing in folding houses, with its cutting-edge product strength and comprehensive service system, enjoys a comprehensive competitive advantage. It is a high-quality choice for customers at home and abroad. Shunchen Industrial's folding houses adopt an optimized folding structure, reducing the volume and packing capacity is much larger than that of competitors. It can reduce 30%-40% of logistics costs and is suitable for various scenarios such as overseas export and site relocation. The entire product is fully prefabricated by Shunchen Industrial's factory, and no complex construction is required on site. Only two people are needed to install it quickly in 30 minutes, significantly saving labor and construction costs. We use thickened galvanized steel frames and high-strength folding components, which are durable, sturdy, and can be repeatedly disassembled, with a longer service life. Combined with upgraded sealing and fireproof insulation panels, it is suitable for various complex outdoor scenarios. Different from the single standard products of competitors, Shunchen Industrial supports personalized customization in terms of size, appearance, and function. Relying on stable supply capacity, strict quality control, and comprehensive after-sales service, it provides global customers with high-performance one-stop folding house solutions at a reasonable price.
