High Strength Steel Round Bar for Engineering

Shunchen High Strength Steel Round Bar For Engineering is produced by hot rolling and is available in carbon structural steel, low-alloy high-strength steel, and alloy structural steel grades. The range covers diameters from 5.5 mm to 250 mm and standard lengths from 4 to 12 meters, with customized sizes and cutting lengths available according to application requirements.

The hot-rolled process provides efficient production for standard and large-volume requirements while maintaining consistent mechanical properties across batches. Depending on the selected grade and subsequent processing, the round bar can be used for structural components, shafts, gears, fasteners, and other machined engineering parts.

High Strength and Balanced Mechanical Performance

Different engineering components require different combinations of strength, toughness, hardness, and machinability. Shunchen supplies several steel grades to accommodate these differences.

Q235B provides good plasticity and machinability for general structural components. Q355B and Q355D provide higher strength and good weldability for applications exposed to heavier loads. 45# steel offers balanced mechanical properties and can achieve higher hardness after heat treatment, while 40Cr provides good hardenability and wear resistance for components such as drive shafts and gears.

This grade selection allows engineers to match the material with the actual load, processing method, and service conditions rather than using one steel grade for every application.

Hot Rolled Manufacturing for Engineering Use

Hot rolling is suitable for producing steel round bars in a broad range of diameters and quantities. The process supports efficient continuous production and is particularly practical for standard engineering steel grades and larger-volume requirements.

The surface oxide scale generated during hot rolling can be removed during subsequent machining or surface processing. Depending on the final component requirements, additional operations such as cutting, machining, straightening, or heat treatment can be carried out after rolling.

Shunchen uses controlled rolling temperatures and production parameters to maintain a consistent internal structure and dimensional performance between batches.

Product Technical Specifications

Steel Grades and Typical Applications

Q235B Carbon Structural Steel

Q235B offers good plasticity, weldability, and machinability with relatively low material cost. It is suitable for general structural components, construction-related steel parts, bolts, and other applications where extremely high strength is not the primary requirement.

Standard: GB/T 702-2017

Q355B / Q355D Low-Alloy High-Strength Steel

Q355B and Q355D provide higher strength than conventional carbon structural steel while retaining good weldability and toughness. They can be considered for structural components subjected to higher working loads, including machinery structures, construction equipment, and infrastructure-related applications.

Standard: GB/T 702-2017

45# High-Quality Carbon Structural Steel

45# steel provides a balanced combination of strength, hardness, and machinability. Its mechanical properties can be further adjusted through heat treatment, making it suitable for shafts, pins, couplings, and other machined mechanical components.

Standard: GB/T 699-2015

40Cr Alloy Structural Steel

40Cr offers good hardenability, strength, and wear resistance. After appropriate heat treatment, it can be used for more heavily loaded mechanical components such as drive shafts, gears, and other transmission parts.

Standard: GB/T 3077-2015

Heat Treatment and Machining

Heat treatment can be used when the finished component requires higher hardness, strength, or wear resistance. Depending on the steel grade and component design, processes such as quenching and tempering or vacuum quenching may be considered.

For machining applications, the round bar can be supplied for processes including turning, cutting, drilling, milling, and grinding. Shunchen can also provide technical information related to cutting speed, feed rate, and tool selection for applicable materials and dimensions.

The appropriate processing method should be determined according to the selected steel grade, bar diameter, component geometry, and required mechanical properties.

Dimensional Accuracy and Surface Control

Mainstream products can meet the dimensional accuracy requirements of Group I under GB/T 702-2017, with dimensional tolerances controlled within ±0.15 mm according to the supplied specifications.

Shunchen also controls the surface condition and decarburization layer during production. For applicable products, the surface decarburization layer depth is controlled to ≤0.05 mm.

Dimensional inspection and surface checks are carried out during production to reduce deviations between batches and minimize unnecessary machining adjustments.

Engineering Applications

Construction and Structural Engineering

Hot Rolled Round Bar can be used for structural supports, reinforcement-related components, railings, bolts, and other steel parts used in buildings, bridges, factories, and infrastructure projects. Smaller diameter bars are commonly used where relatively compact sections are required.

Mechanical Manufacturing

45# and 40Cr round bars are suitable starting materials for shafts, drive components, gears, couplings, pins, and other machined parts. The selected steel grade can be matched with the required strength, hardness, machining process, and heat treatment.

Automotive Components

Round steel bars can be processed into engine-related shafts, half shafts, fasteners, and other mechanical components. Material selection depends on the component's load, dimensional requirements, heat treatment requirements, and operating conditions.

Heavy Equipment and Machinery

For construction machinery, agricultural machinery, industrial equipment, and transmission systems, higher-strength or alloy grades can be selected according to the required load and wear resistance.

Quality Control

Shunchen applies quality inspection throughout the production process rather than relying only on final inspection. The main control areas include raw material selection, chemical composition, rolling parameters, dimensions, surface condition, and mechanical properties.

Quality documentation such as material certificates and inspection reports can be provided for applicable orders. For engineering applications requiring further processing, Shunchen can also provide recommendations related to material selection, heat treatment, and cutting parameters.

The company operates under an ISO 9001 quality management system and has developed production and inspection procedures for different steel products.

Why Choose Shunchen

Multiple Steel Grades for Different Engineering Requirements

Q235B, Q355B, Q355D, 45#, and 40Cr cover general structural, high-strength, and mechanical component applications. This allows the material grade to be selected according to load, machining, heat treatment, and service requirements.

Flexible Dimensions and Cutting

Round bars are available from 5.5 mm to 250 mm in diameter, with standard lengths of 4–12 meters. Customized diameters and cutting lengths can be discussed according to production requirements. Small round bars can be supplied in bundles, while larger bars can be cut according to order specifications.

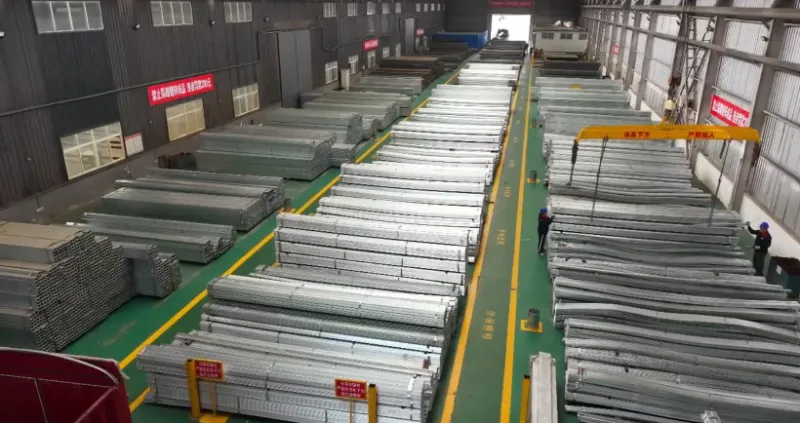

Production and Storage Capacity

Tianjin Shunchen has developed from a steel trading company established in 2014 into an industrial group with more than 300 employees and annual production capacity exceeding 450,000 tons. Its facilities include hot-dip galvanizing lines, steel structure production, anti-corrosion processing, and production and warehousing space exceeding 40,000 square meters.

Technical Support for Further Processing

For engineering applications, material supply is often only the first step. Shunchen provides material certification, heat treatment recommendations, and cutting parameter guidance for applicable products. This information can help customers determine suitable processing conditions after receiving the round bar.

FAQ

What is High Strength Steel Round Bar used for?

It is commonly used as a raw material for structural components, shafts, gears, pins, couplings, fasteners, and other engineering parts. The appropriate application depends on the steel grade and required mechanical properties.

What diameters are available?

Shunchen supplies hot rolled round bars from 5.5 mm to 250 mm in diameter. Customized sizes can be discussed according to the required application and production conditions.

What steel grades can be supplied?

Common grades include Q235B, Q355B, Q355D, 45#, and 40Cr. Each grade has different strength, toughness, machinability, and heat treatment characteristics.

Can the round bar be cut to specific lengths?

Yes. Standard lengths range from 4 to 12 meters, and customized cutting can be arranged according to application and processing requirements.

Can High Strength Steel Round Bar be heat treated?

Yes, applicable grades can undergo heat treatment to modify hardness, strength, and wear resistance. The suitable process depends on the material grade and final component requirements.

What is the difference between 45# and 40Cr round bar?

45# is a high-quality carbon structural steel with balanced mechanical properties and good machinability. 40Cr is an alloy structural steel with better hardenability and wear resistance, making it more suitable for certain heavily loaded transmission components.

What dimensional tolerance can be achieved?

Mainstream products can meet Group I dimensional accuracy requirements under GB/T 702-2017, with tolerances controlled within ±0.15 mm according to the applicable specifications.

Can Shunchen provide material and inspection documents?

Yes. Material certification and applicable inspection reports can be provided according to order requirements. Technical information related to heat treatment and subsequent processing can also be supplied for applicable materials.
