Deformed Bar in Coil

Tianjin Shunchen factory's Deformed Bar in Coil, also known as hot-rolled ribbed steel bars, has two longitudinal ribs and evenly distributed transverse ribs on its surface. The core materials are HRB400 and HRB500, with diameters ranging from 6mm to 50mm. It can be made into straight bars or coils and is the core steel material that can withstand tensile forces in concrete components. Its transverse rib design can enhance the bond strength with concrete, which is different from round steel bars and suitable for the stress requirements of multiple scenarios in construction and infrastructure.

    Tianjin Shunchen Industrial's Deformed Bar in Coil, also known as hot-rolled ribbed steel bars, features two longitudinal ribs and uniformly distributed transverse ribs on its surface. Unlike smooth round bars, this specialized rib design significantly enhances the grip force with concrete, effectively preventing relative slip and ensuring the overall stability of reinforced structures. It is the core steel material designed to bear tensile forces in concrete components, widely used in beams, columns, foundations, and floor slabs.

    HRB400/500 Steel Grades
    ≤±3mm Cutting Tolerance
    ≥14% Elongation at Break
    ≥0.8mm Longitudinal Rib Height

    Mechanical Properties & Size Adaptability

    The mechanical properties of our Deformed Bar in Coils are highly stable and fully meet national standards. For HRB400, the yield strength is ≥ 400MPa and tensile strength is ≥ 540MPa. For HRB500, the yield strength is ≥ 500MPa and tensile strength is ≥ 630MPa. The seismic performance comfortably meets national requirements, adapting to complex working conditions and supporting the long-term safe operation of infrastructure projects.

    We offer flexible size specifications. Standard straight bar lengths are 9m and 12m, while Deformed Bar in Coil shapes range from 6mm to 14mm in diameter. The surface is free of cracks and oxide scales, with neat, defect-free rib patterns. The material is compatible with automated processing and does not require secondary trimming. For humid coastal areas, we provide customized hot-dip galvanizing treatment with a zinc layer of ≥ 80μm to significantly enhance corrosion resistance and durability.

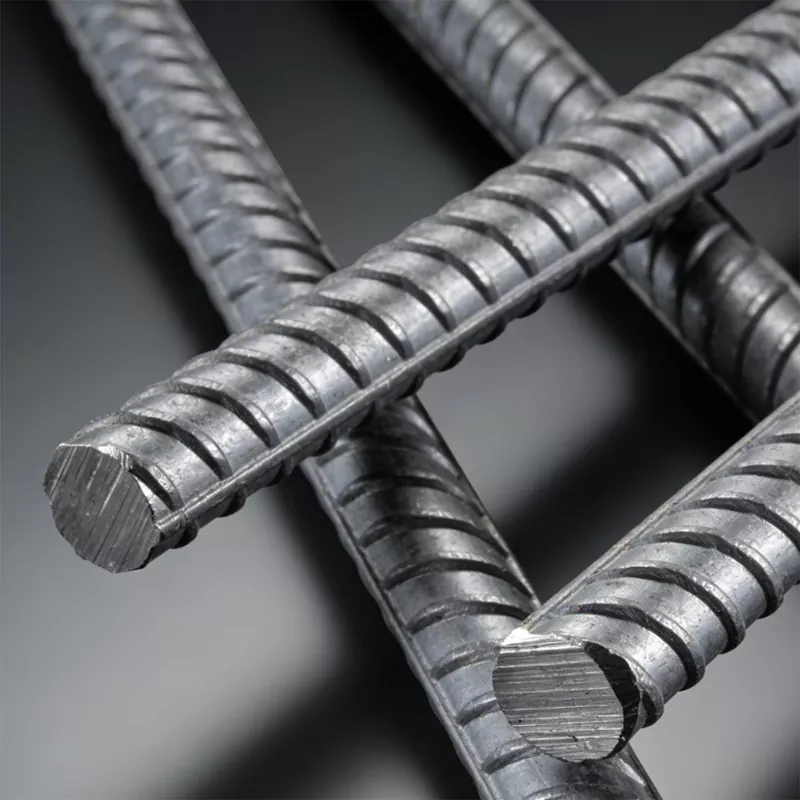

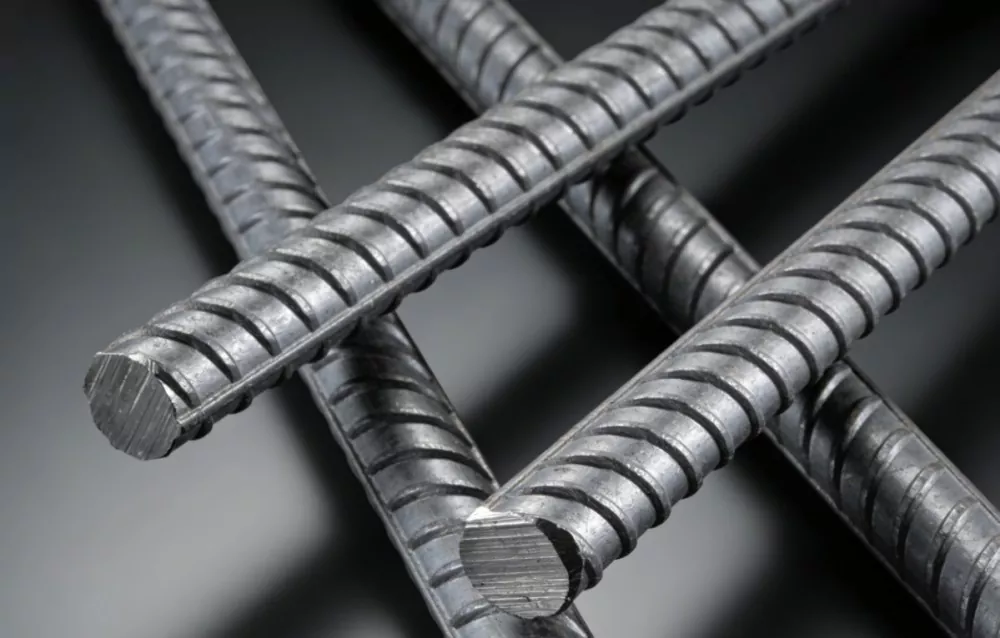

    Deformed bar in coil with uniform transverse ribs

    Technical Specifications

    Specification Category Technical Parameter Indicators Applicable Scenario Description
    Material & Mechanical Mainstream: HRB400, HRB500
    Yield Strength: HRB400 ≥ 400MPa, HRB500 ≥ 500MPa
    Tensile Strength: HRB400 ≥ 540MPa, HRB500 ≥ 630MPa
    Elongation: ≥ 14%
    Core load-bearing areas such as photovoltaic foundations, industrial plants, and municipal utility tunnels. Works with customized embedded plates.
    Dimensions Diameter: 6mm–50mm (conventional)
    Length: 9m, 12m (straight bars)
    Coil Diameter: 6mm–14mm
    Rib Height: ≥ 0.8mm
    Straight bars for on-site reinforcement; coils for cutting and processing to meet different pre-embedded assembly requirements.
    Processing Precision Customizable coil/straight form.
    Length tolerance after cutting: ≤±3mm.
    Surface is free of cracks/oxide skin.
    Compatible with automated cutting. Precisely matches customized embedded anchor bars without secondary trimming.
    Corrosion & Packaging Natural rust prevention (standard).
    Customizable hot-dip galvanizing (zinc ≥ 80μm).
    Straightened bundling or coiled packaging.
    Adapts to outdoor and underground humid conditions, ensuring durability when used with embedded panels.
    Execution Standards Weldable as embedded plate anchor bars.
    Customizable anchor bar lengths.
    Standard: GB/T1499.2-2018
    Form an integrated system with Shunchen's customized embedded boards and cut steel bars, meeting strict project acceptance.

    Application Fields and Case Studies

    1. Photovoltaic Foundation Reinforcement

    Application: Serves as the core load-bearing steel bar for photovoltaic bracket foundations. It is welded and matched with customized embedded panels to transmit component, wind, and snow loads, strengthening the connection stability between the foundation and the bracket.

    Case Study: A photovoltaic logistics park project in Shandong Province selected HRB400 threaded steel (diameter 12mm, coiled form) for embedded plate anchor bar welding. A total of 280 tons was used. The yield strength exceeded 400MPa, ensuring a wind resistance level of 12 for the photovoltaic foundations. It adapted to long-term outdoor operation and improved construction efficiency by 20%.

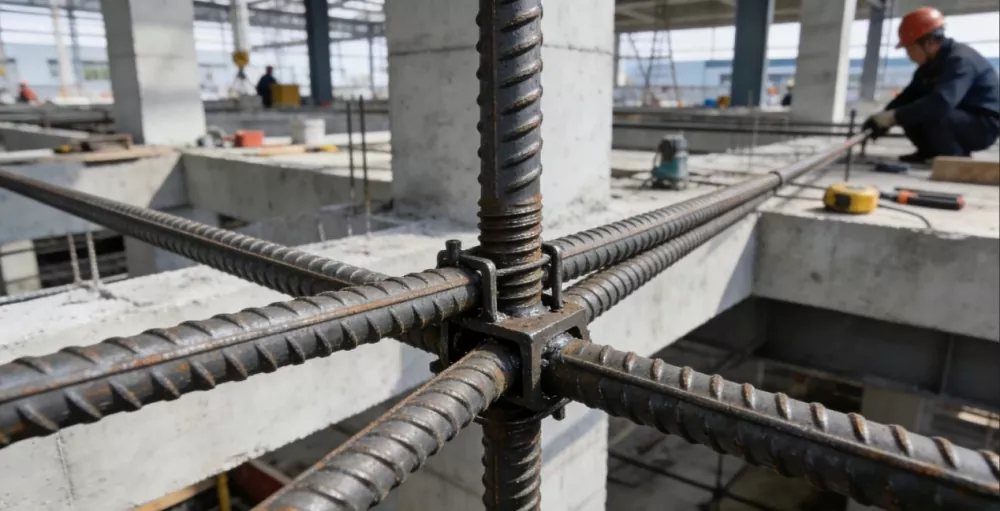

    Deformed bar in coil used for photovoltaic foundation reinforcement
    2. Industrial Plant Beam & Column Reinforcement

    Application: Used for factory beams, columns, equipment foundation main reinforcement, and stirrups. It works in conjunction with customized cut steel bars to enhance the overall structural integrity and heavy load-bearing capacity.

    Case Study: An electronics factory in Jiangsu Province utilized HRB400 straight threaded steel (14mm) and coiled steel (8mm) for main and hoop reinforcement. A total of 350 tons was consumed. Welding qualification rate reached 99.5%, with a dimensional tolerance of ≤±3mm after processing, meeting the heavy equipment operational load requirements.

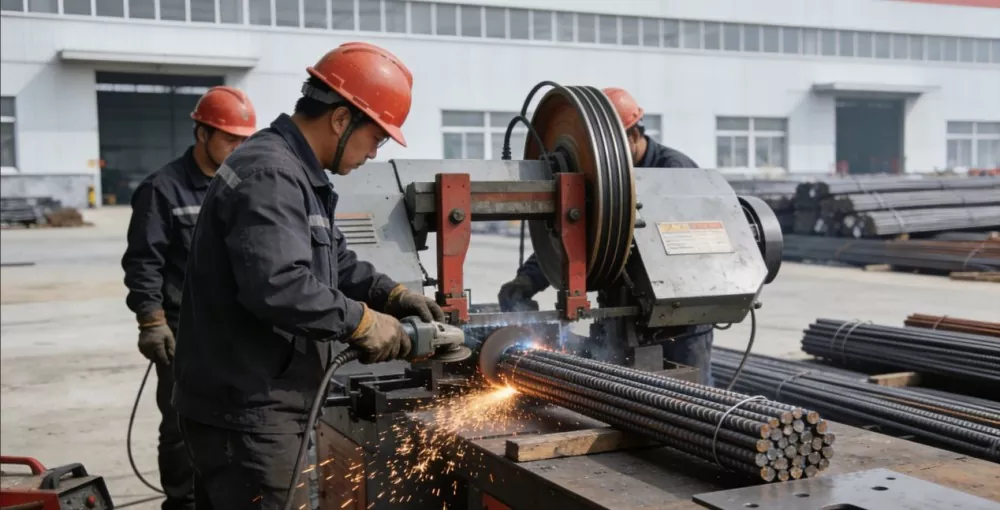

    Deformed bar in coil for industrial plant reinforcement
    3. Municipal Pipe Gallery Infrastructure

    Application: Adapts to the reinforcement of underground pipe gallery main bodies. With high strength and crack resistance, it cooperates with embedded plates and bolts to resist underground humid environments and structural stress.

    Case Study: A municipal pipe gallery project in Tianjin customized HRB500 high-strength threaded steel (10mm). The 190 tons used had a yield strength ≥ 500MPa and tensile strength ≥ 630MPa. It effectively improved the crack resistance of the structure, successfully passing municipal acceptance and ensuring long-term safe operation.

    Deformed bar in coil used in municipal pipe gallery
    Related Solutions: We also supply welded rebar mesh and PC steel strands for comprehensive concrete reinforcement. Explore our full photovoltaic support systems for solar projects.

    Why Choose Shunchen

    Shunchen Industrial specializes in the HRB400/HRB500 full range of threaded steel products. Relying on high-quality substrates and precision rolling processes, our ribs are regular and uniform, and the grip strength far exceeds the industry average.

    Our mechanical properties strictly comply with national standards, with precise and controllable dimensional tolerances. We can customize coil and straight bar shapes as needed. By integrating our self-owned cutting processing and customized embedded boards, we achieve a seamless connection from raw materials to finished products, significantly reducing your procurement costs. We support customized anti-corrosion processes, guarantee delivery times, and provide full quality traceability for every batch.

    Shunchen deformed bar in coils packaging and storage

    Frequently Asked Questions

    What is the difference between HRB400 and HRB500 deformed bars?

    The primary difference lies in their mechanical strength. HRB400 has a yield strength of ≥ 400MPa and a tensile strength of ≥ 540MPa, making it suitable for general reinforced concrete structures. HRB500 offers higher strength with a yield strength of ≥ 500MPa and tensile strength of ≥ 630MPa, which is ideal for heavy-duty infrastructure, high-rise buildings, and projects requiring enhanced seismic performance.

    Should I choose coiled bars or straight bars for my project?

    The choice depends on your construction method and processing capabilities. Straight bars (9m or 12m) are convenient for direct on-site reinforcement without the need for straightening machines. Coiled bars (typically 6mm–14mm) are highly cost-effective for bulk transport and are ideal if you have automated cutting and straightening equipment on-site, as they significantly reduce material waste and handling costs.

    Can you provide cut-to-length processing and welding services?

    Yes. Shunchen offers comprehensive downstream processing services. We can customize the cutting length with a tolerance of ≤±3mm. Furthermore, we can weld the deformed bars to customized embedded plates (anchor bars) according to your project drawings, ensuring a seamless fit and reducing your on-site labor requirements.

    Is hot-dip galvanizing necessary for coastal projects?

    For structures exposed to high humidity, salt spray, or coastal environments, we strongly recommend our customized hot-dip galvanizing treatment. With a zinc layer of ≥ 80μm, it provides exceptional corrosion resistance, preventing premature rusting and significantly extending the lifespan of your infrastructure.

    What are your standard delivery times and payment terms for bulk orders?

    For standard specifications in stock, delivery can be arranged within 7-15 days. For customized sizes, welding, or galvanizing, lead times are typically 20-30 days depending on the order volume. We support flexible payment terms including T/T and L/C, tailored to your procurement requirements. Please contact our sales team for a precise schedule.

    Request a Quote for Deformed Bar in Coils

    Send us your required steel grade (HRB400/HRB500), diameter, and estimated quantity. Our engineering team will review your application and provide a factory-direct quotation.
