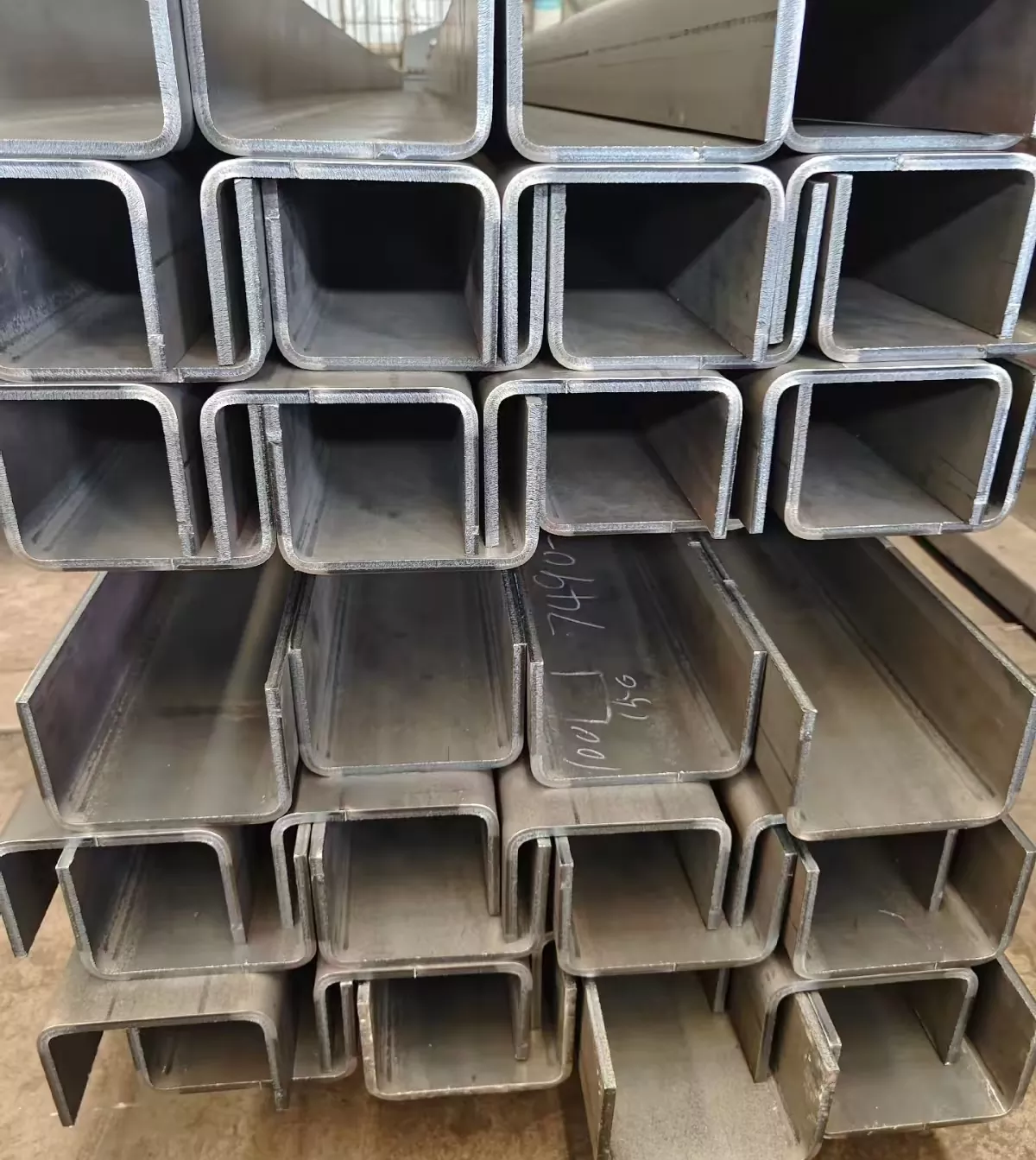

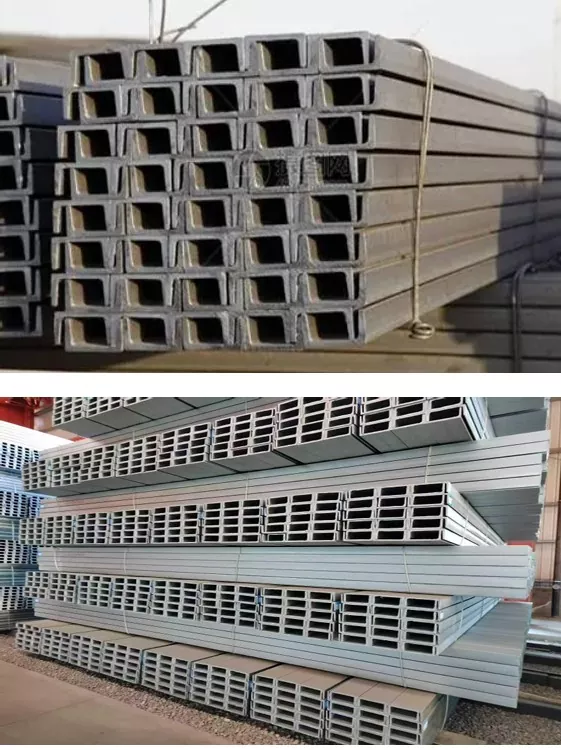

U Channel Steel is widely used across five core fields: construction engineering, machinery manufacturing, warehousing and logistics, transportation infrastructure, and municipal engineering. Heavy-duty channel steel meets the rigorous demands of steel structure factories, port cranes, and heavy-duty racks with strong bearing capacity and structural stability. For outdoor or corrosive environments, hot-dip galvanized channel steel provides excellent resistance to salt spray and high humidity, suitable for bridge railings and dock equipment.
Product Advantages
High Mechanical Performance
The groove-shaped section design of U Channel Steel evenly distributes stress, exhibiting outstanding resistance to bending and shear forces. It is less prone to deformation under heavy loads, providing stable and reliable structural support.
Multi-Standard Compliance
Fully complies with mainstream international standards including ISO, ASTM, GB/T 706, and EN 10025. Complete material certification and inspection reports are provided to meet foreign trade export customs clearance and project acceptance requirements.
High Cost-Effectiveness
As standardized mass-produced profiles, they boast mature production processes and short supply cycles. Compared to non-standard steel materials of the same strength, they reduce engineering material and transportation costs, offering economy and practicality.
Technical Specifications
| Category | Specific Parameters |
|---|---|
| Execution Standard | GB/T 706, ASTM A36/A572, EN 10025 |
| Common Grades | Q235B, Q355B; A36, A572 Gr.50; S235JR, S355JR |
| Size Range |
Light Channel: 5#–40#, height 50–400mm, waist thickness 3.5–14mm Ordinary Channel: 5#–40#, height 50–400mm, waist thickness 4.5–16mm |
| Length Specs | 6m / 9m / 12m (Customizable and cut-to-size) |
| Surface Treatment |
1. Black material: Hot-rolled primary color, suitable for indoor dry environments. 2. Hot-dip galvanizing: Zinc layer ≥ 85μm, anti-corrosion and rust-proof. 3. Spray painting: Customized color anti-corrosion paint. |
Application Fields
U Channel Steel adapts to the load-bearing reinforcement needs of multiple fields. See our broader range of steel sections.
Construction Engineering
Used for load-bearing structures of building beams and walls, often combined with Steel I Beams and Angle Steel in steel structures.
Machinery Manufacturing
Used as equipment racks, bases, protective barriers, and framing for agricultural and engineering machinery. View our custom profiles.
New Energy & Solar
Widely used as structural supports and purlins in photovoltaic support systems, especially in C-shaped channel forms.
Transportation Infrastructure
Highway guardrails, bridge components, and railway infrastructure, including galvanized steel grating supports.
Power & Municipal
Transmission tower supports, street lamp pole bases, and water supply/drainage pipe supports.
Customized Services
Tianjin Shunchen Industrial Company has been dedicated to the production of structural steel for over three decades. We hold multiple certifications including international ISO 9000, 3A systems, and the European Union's CE mark. Through 12 rigorous process flows and three levels of comprehensive inspection, we have achieved a stable record of zero annual quality and safety accidents and zero order defaults for 12 years.
The products cover two major series: light and regular, with a wide range of specifications. They can be produced from 5# to 40#, with a height range from 50mm to 400mm and a waist thickness between 3.5mm and 16mm. Standard lengths are 6m, 9m, or 12m. Surface treatment offers black material, hot-dip galvanizing, and anti-corrosion painting. The hot-dip galvanized layer is not less than 85 microns. All materials undergo rigorous testing to ensure tensile strength, yield strength, and elongation meet standards. Each batch can be provided with authoritative CE and SGS certification reports.
Why Choose Shunchen?
Relying on a full industry chain layout and a warehousing system covering 10,000 square meters, we provide one-stop procurement support from production to delivery.
Manufacturing Excellence
Shunchen integrates production and sales, with advanced production technology, a comprehensive quality inspection process, and ISO9000/3A certification. Our senior management has over 20 years of experience in hot-dip galvanizing production. With a sales team of over 60 professional trainers and auditors, our regional business scale ranks among the top 10 in the industry. We have production companies in multiple locations, allowing us to ship to you from different regions.
Frequently Asked Questions
What is the difference between light and ordinary U channel steel?
Light channel steel has a thinner waist thickness (3.5–14mm) and is generally used for lighter structural loads or secondary framing. Ordinary channel steel has a thicker waist thickness (4.5–16mm), providing higher strength and shear resistance, making it suitable for heavy-duty structural applications like building frames and machinery bases.
What is the thickness of your hot-dip galvanized layer?
Our standard hot-dip galvanized layer is not less than 85 microns. This thickness provides excellent anti-corrosion performance for outdoor and high-humidity environments. If your project requires higher salt-spray resistance, we can customize a thicker zinc layer upon request.
How does U Channel compare to C Channel Steel?
While both have a similar channel shape, U Channel Steel typically has a standard slope on the inner flange faces (usually 8%), making it ideal for structural load-bearing and heavy machinery. C Channel Steel usually refers to cold-formed or customized purlins with a straight, uniform thickness, often used in roof and wall systems.
Can you manufacture custom sizes and lengths?
Yes. We offer standard lengths of 6m, 9m, and 12m, but we also provide cut-to-size services based on your installation requirements. Our production capabilities cover sizes from 5# to 40#, and we can customize heights from 50mm to 400mm.
Request a Quote for U Channel Steel
Provide us with your required dimensions, steel grade, surface treatment, and order quantity. Our technical team will respond promptly with a competitive quotation and delivery schedule.
