Hot Dip Galvanized Grating

Engineered for demanding industrial and infrastructure applications, Shunchen Hot Dip Galvanized Grating delivers an optimal balance of heavy-duty load capacity, ventilation, and lightweight installation. Its open-grid structure prevents liquid and debris accumulation, making it an essential choice for manufacturing plants, chemical facilities, wastewater treatment sites, and offshore platforms. Available in standard Q235B steel with customized bearing bar sizes and mesh spacing, Shunchen grating can be tailored with serrated edges for enhanced slip resistance in wet or oily environments.

What is Hot Dip Galvanized Grating？

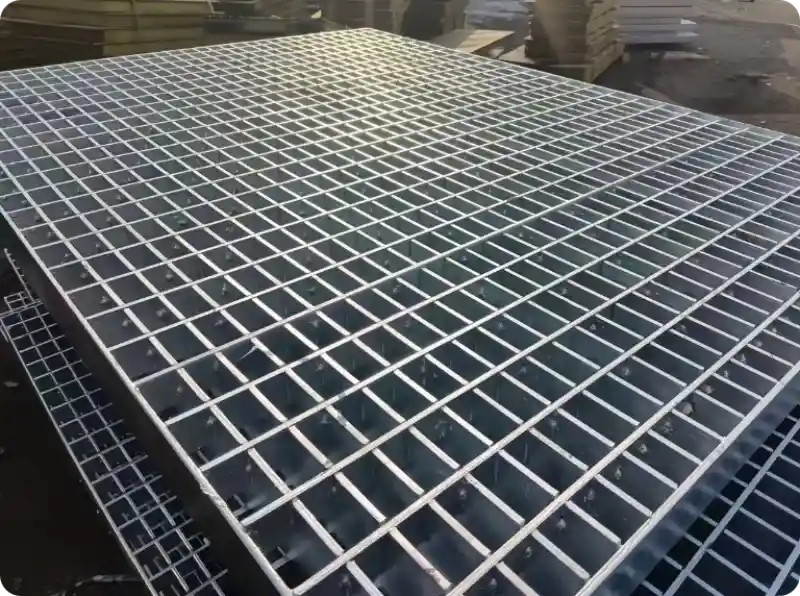

Hot Dip Galvanized Grating is a load-bearing metal panel manufactured by welding bearing flat bars and cross bars into an integrated structure, followed by full hot-dip galvanizing treatment for corrosion protection. The open grid design provides a combination of load support, drainage, ventilation, and lightweight installation advantages compared with solid steel plates.

Shunchen supplies Galvanized Steel Grating in welded, serrated, and compound structures, with customized options for bearing bar size, spacing, panel dimensions, and surface treatment. The products are widely used for industrial platforms, walkways, stair treads, drainage covers, and equipment access systems.

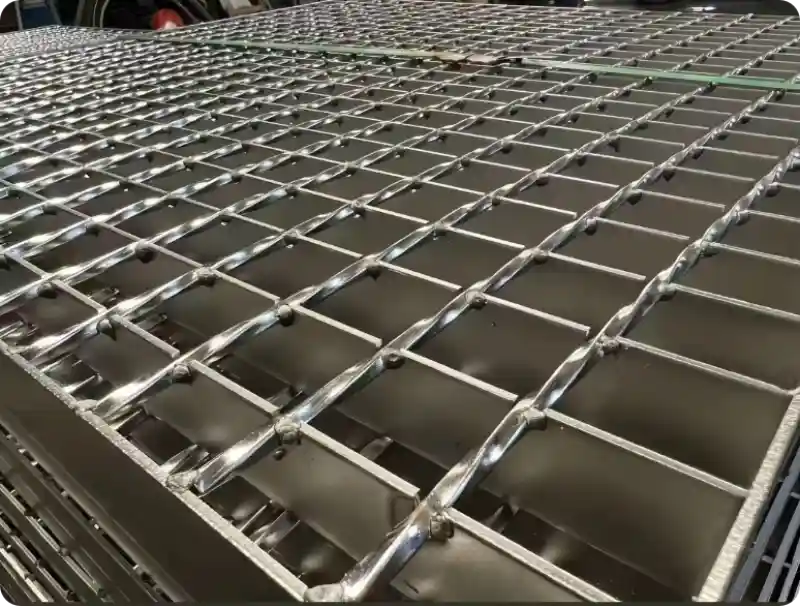

The standard production uses Q235B carbon steel flat bars and twisted square cross bars, with hot-dip galvanizing applied after surface preparation to improve durability in outdoor and corrosive environments.

Product Features

High Load Capacity with Stable Structure

The bearing flat bars of Hot Dip Galvanized Grating are arranged according to load requirements, providing stable vertical load support for pedestrian traffic, equipment operation areas, and industrial platforms.

Different combinations of flat bar height, thickness, and spacing allow the grating to match various load conditions, from lightweight walkways to heavy-duty industrial applications.

Anti-Slip Surface for Safer Operation

Galvanized Steel Grating can be supplied with serrated bearing bars to increase surface friction.

The serrated design is suitable for areas exposed to:Water, Oil, Chemical liquids, Outdoor weather conditions.

Efficient Drainage and Ventilation Performance

The open grid structure allows water, debris, and airflow to pass through quickly.

Compared with closed steel plates, Hot Dip Galvanized Grating reduces water accumulation and improves ventilation performance.

Long-Term Corrosion Protection

The hot-dip galvanizing process creates a zinc coating layer on the steel surface, providing resistance against moisture, oxidation, and environmental corrosion.

Lightweight Design and Easy Handling

The open structure reduces overall weight while maintaining required load-bearing performance.

Compared with solid steel plates of similar capacity, it is easier to transport, lift, and install, helping reduce structural load and installation difficulty.

Applications

Industrial Platforms and Walkways

Hot Dip Galvanized Grating is commonly used for factory operation platforms, equipment maintenance walkways, and production area access passages in manufacturing plants, processing workshops, and industrial facilities. The open structure provides a suitable working surface for areas that require regular personnel access and equipment maintenance.

Stair Treads and Access Systems

Galvanized Steel Grating can be fabricated into stair treads for industrial stairs, emergency access stairs, and steel structure stair systems. The panel dimensions, bearing bar specifications, and fixing method can be adjusted according to stair design and installation requirements.

Chemical and Wastewater Facilities

It is used in sewage treatment plants, chemical processing facilities, and water treatment systems where platforms and walkways may be exposed to moisture or corrosive substances. The galvanized surface provides additional protection for carbon steel in these operating environments.

Port, Energy, and Infrastructure Projects

Heavy-duty Galvanized Steel Grating can be used for port platforms, power plant walkways, mining facilities, and offshore service areas. Different bearing bar dimensions and spacing can be selected according to the required load and structural span.

Drainage Covers and Municipal Facilities

Customized Hot Dip Galvanized Grating can be manufactured for drainage channels, inspection areas, trench covers, and other municipal infrastructure. Panel dimensions and openings can be processed according to the layout of drainage systems and surrounding structures.

Installation and Maintenance Guide

Installation Methods

It can be installed using grating clips, bolted connections, or welding fixation according to the project structure and whether future removal is required. During installation, the support spacing, panel alignment, load direction, and fixing points should be checked to ensure that each panel is properly supported and secured.

Maintenance Requirements

Galvanized Steel Grating generally requires routine cleaning and inspection rather than frequent maintenance. Dirt, debris, and other deposits should be removed from the grating surface, while fixing points and connections should be checked periodically. If the galvanized coating is damaged during installation or use, the exposed steel area should be cleaned and repaired with a suitable zinc-rich coating.

Project Support and Export Service

Specification Confirmation

Before production, Shunchen communicates with customers regarding the application environment, expected load, panel dimensions, bearing bar specifications, mesh spacing, and surface treatment requirements. This information is used to confirm the appropriate Galvanized Steel Grating configuration before production.

Customized Processing Support

Shunchen provides customized cutting, edge wrapping, hole opening, special-shape processing, and stair tread fabrication according to engineering drawings. Irregular panels and openings can be processed to match equipment layouts, pipelines, drainage systems, and structural connections.

Export Documentation Support

For overseas Hot Dip Galvanized Grating orders, Shunchen can prepare commercial invoices, packing lists, material test certificates, inspection reports, and zinc coating inspection records according to customer and project requirements.

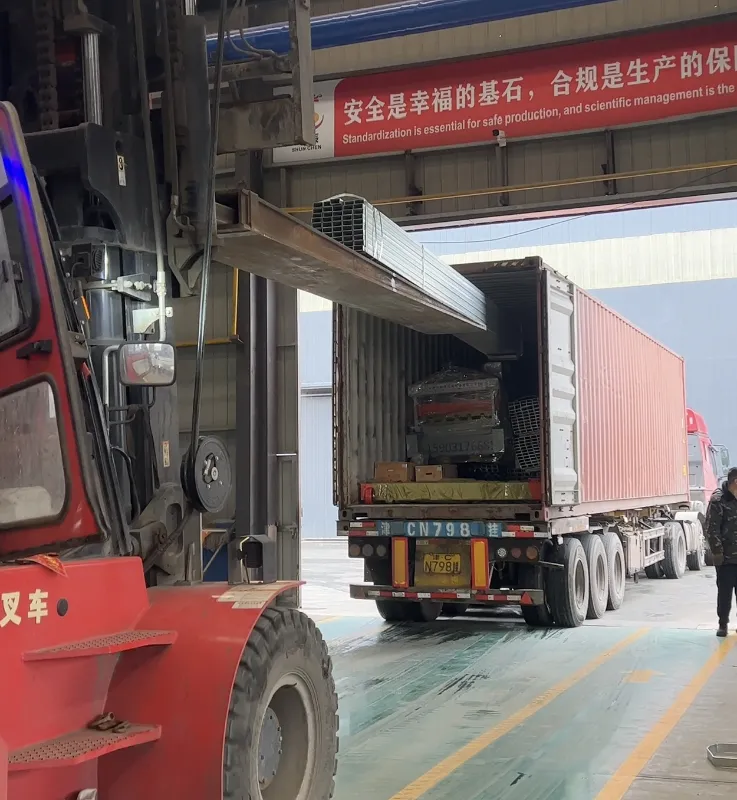

Logistics Coordination

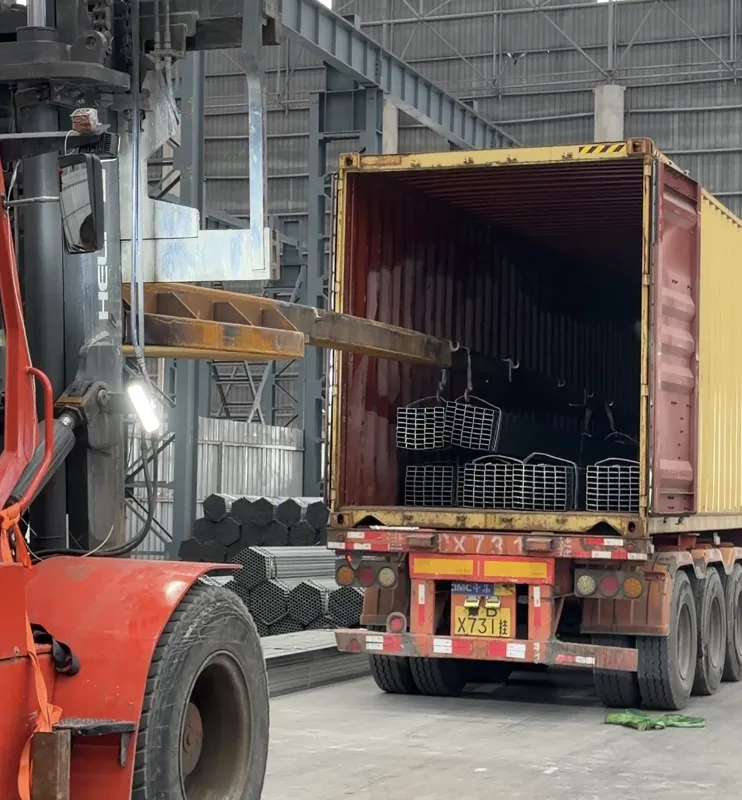

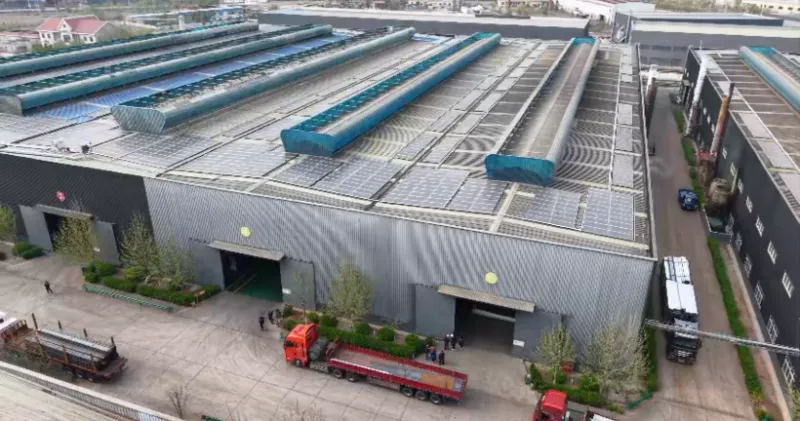

Shunchen coordinates warehouse preparation, product bundling, container loading, and international shipment arrangements for bulk orders. Product identification and packing information can be provided to facilitate receiving and quantity verification after delivery.

Why Choose Us

Professional Galvanizing Production Capability

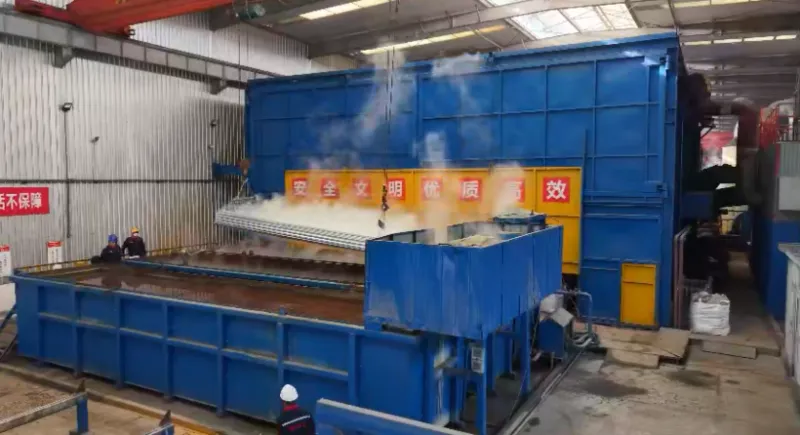

Shunchen operates dedicated hot-dip galvanizing production lines for steel corrosion protection processing. The production process covers surface preparation, galvanizing, cooling, and coating inspection to maintain consistent treatment quality across production batches.

Complete Steel Product Supply System

Shunchen integrates steel material supply, hot-dip galvanizing, customized processing, warehousing, and logistics coordination. This allows customers to handle material procurement and secondary processing through one supply chain rather than coordinating multiple suppliers.

Quality Documentation and Inspection Support

Galvanized Steel Grating orders can be supplied with material certificates, inspection reports, and zinc coating inspection records. These documents provide traceability for material verification and project acceptance.

Customized Manufacturing Ability

Shunchen supports customized panel dimensions, mesh spacing, bearing bar sizes, edge treatment, openings, and special shapes according to engineering drawings. This is suitable for projects where standard grating panels do not match the required installation dimensions.

International Project Experience

Shunchen has experience supplying steel products to overseas markets and engineering projects. Its production, warehousing, and international trade operations support bulk procurement, customized orders, and cross-border delivery requirements.

FAQ

Q1: What is the difference between plain and serrated Hot Dip Galvanized Grating?

Plain grating has a smooth bearing surface and is generally used in dry areas where additional slip resistance is not required. Serrated grating has a toothed bearing surface that increases friction and is more suitable for wet, oily, or outdoor working environments.

Q2: How do I select the correct grating specification?

The specification should be selected according to the required load, support span, installation conditions, and application. Bearing bar thickness, bearing bar height, and cross bar spacing are the main factors affecting the load-bearing characteristics of Galvanized Steel Grating.

Q3: Can Galvanized Steel Grating be customized according to drawings?

Yes. Shunchen can process Hot Dip Galvanized Grating according to engineering drawings, including customized dimensions, cutting, edge treatment, openings, and special shapes.

Q4: Is it suitable for outdoor use?

Yes. The zinc coating provides additional corrosion protection for carbon steel exposed to moisture and outdoor conditions. For coastal, chemical, or other highly corrosive environments, the required galvanizing specification should be confirmed according to the actual operating conditions.

Q5: What documents can be provided for bulk orders?

Shunchen can provide material certificates, inspection reports, packing documents, and zinc coating inspection records according to the requirements of the customer and project.
