As the professional manufacturer, Shunchen industry would like to provide you high quality Embedded Steel Plate. Embedded steel plates, as metal connectors embedded in concrete components (walls, floors, columns, etc.) in advance, are key transition bridges between building structures and auxiliary components. It is mostly made of carbon steel or stainless steel, which is cut, welded and anti-corrosion treated. Bolt holes or welded nodes are reserved on the surface to facilitate accurate connection with curtain wall brackets and component bases.
    High-Precision Connection Carrier for Modern Construction

    Designed for curtain walls, heavy equipment bases, and critical infrastructure. Manufactured with CNC cutting and advanced anti-corrosion technologies.

    Tolerance ≤±0.2mm
    350,000 Tons Annual Capacity
    Weld Qualification 99.9%
    Salt Spray ≥ 1000h

    The core function of an embedded steel plate focuses on three key positioning areas, serving as the critical carrier for connecting the main building structure with auxiliary structures:

    Load Transmission Hub

    Undertakes the dead weight, wind load, and vibration load of auxiliary components like curtain walls. Evenly transmits distributed loads to the main concrete structure to avoid damage from local stress concentration.

    Installation Reference

    Relies on accurate positioning during the pre-embedding stage to provide a fixed reference for subsequent supports. Ensures regular arrangement and installation accuracy, greatly reducing on-site secondary processing.

    Structural Stability Guarantee

    Forms a solid integrated structure with concrete pouring, enhancing the connection stability between external components and the main structure. Improves anti-overturning and anti-vibration capabilities.

    Technical Specifications

    Specification Category Technical Parameters Detailed Indicators Adaptation Specification
    Base Size Normal Specification Length/width: 200×200mm~600×600mm; thickness: 8mm~20mm 200×200×8mm for light glass partition; 600×600×20mm for heavy curtain wall
    Custom Size Any length and width (max ≤1000×1000mm), thickness (min ≥5mm) Adapts to personalized requirements of special-shaped curtain walls
    Size Tolerance Outline Size Tolerance ±0.5mm (conventional), ±0.2mm (precision grade) Precision level adapts to high-rise curtain walls requiring extremely high accuracy
    Hole Position Accuracy Tolerance of hole center distance ≤±0.2mm, hole diameter ±0.1mm Ensures accurate butt joint with curtain wall bracket bolts
    Material Properties Mainstream Material Carbon steel: Q235B, Q345B; Stainless steel: 304, 316 Q345B for heavy loads; 316 stainless steel for coastal high salt fog
    Mechanical Property Core Strength Bending strength: Q235B ≥ 235MPa, Q345B ≥ 345MPa; Shear strength ≥ 120MPa Ensures structural stability during load transmission
    Surface Treatment Anticorrosion Process Hot dip galvanizing (≥80μm), fluorocarbon spraying (≥40μm), mirror polishing Hot-dip galvanized for outdoor corrosion resistance; mirror polish for indoor decoration
    Technological Req. Forming Process CNC plasma cutting, precision stamping; weld height ≥8mm, no pores/cracks Ensures plate flatness (≤1mm/m), improving adhesion with concrete

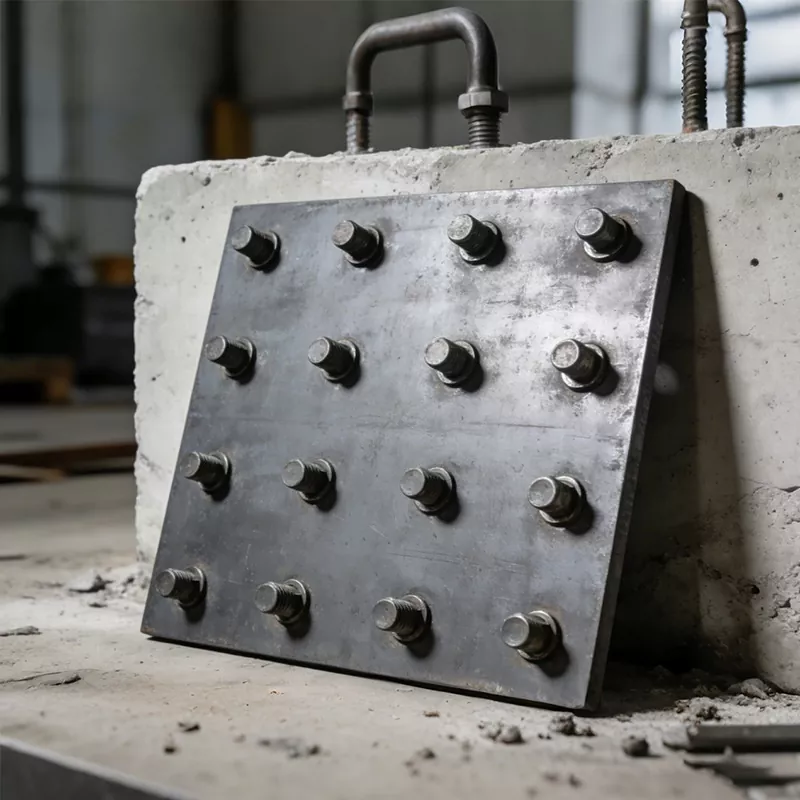

    Embedded steel plate for construction

    Core Selling Points: High Precision, Strength & Adaptability

    This Embedded Steel Plate strictly controls size tolerance within ±0.5mm and bolt hole accuracy at ≤±0.2mm. It accurately connects with curtain wall brackets and other components. Using premium materials like Q345B and 304/316 stainless steel, the bending strength reaches ≥345MPa. The surface undergoes professional treatments like hot-dip galvanizing, with salt spray resistance ≥1000h. We support full customization for size, hole layout, and surface treatment to meet strict B2B project requirements.

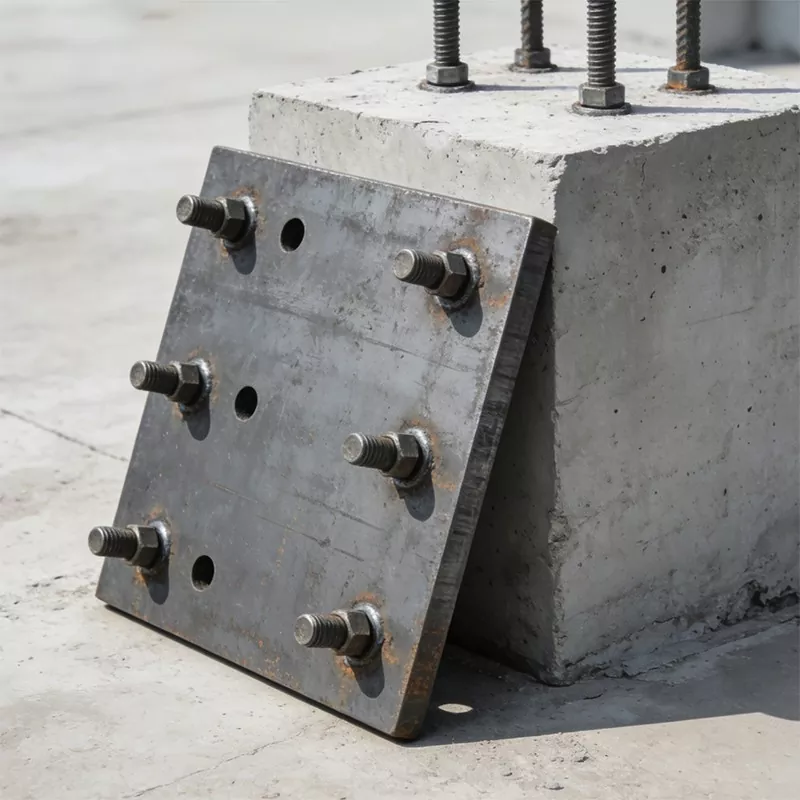

    Custom embedded steel plate

    Application Scenarios & Verified Cases

    Heavy Machinery Plant Project in Tangshan

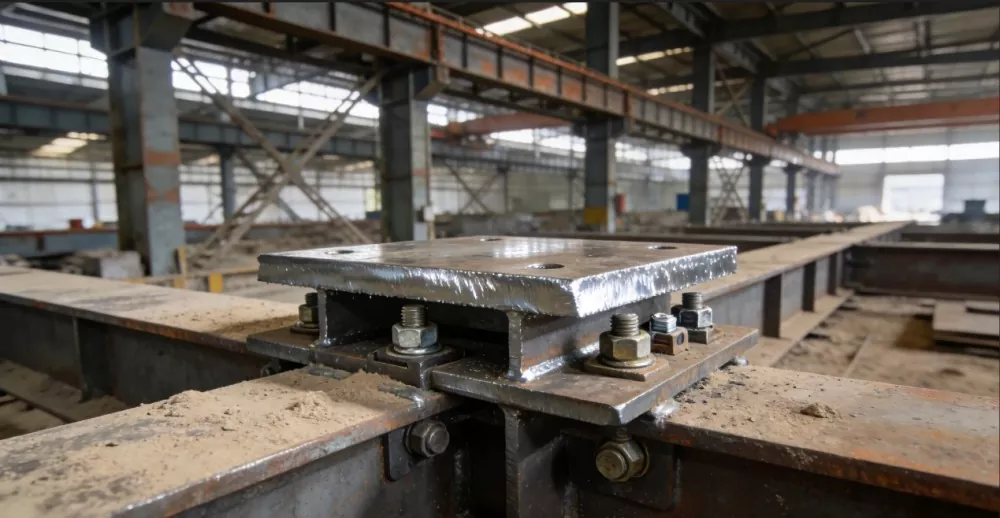

    The project utilized thickened embedded steel plates to stably bear the load of a 50-ton crane beam. The materials and surface treatments were customized to adapt to the high dust and high humidity environment of the heavy industry facility, ensuring long-term operational safety.

    Heavy machinery plant embedded steel plate
    Chengdu Tianfu International Airport

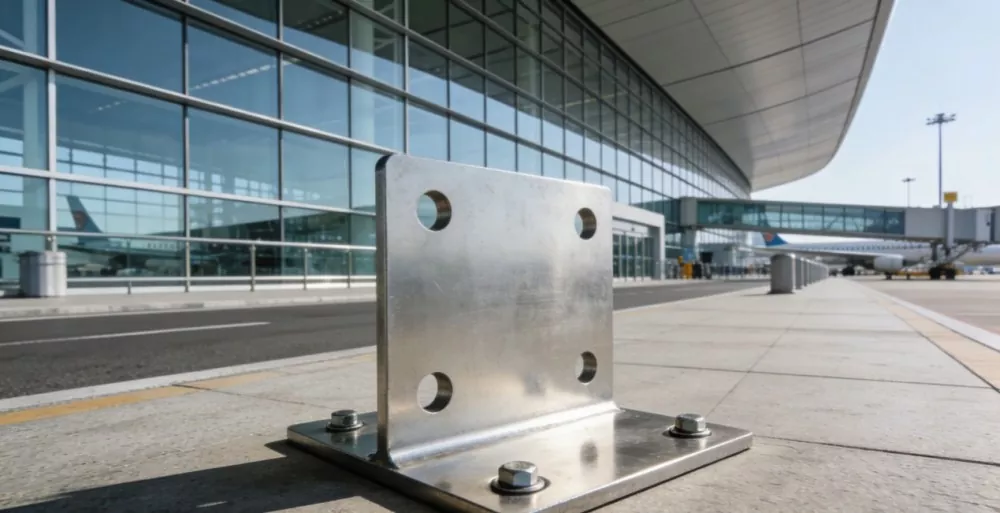

    304 stainless steel embedded plates were used to connect the curtain wall with the steel structure. This ensured the flatness of the super-span curtain wall and provided excellent weather resistance, meeting the strict quality standards of a major transportation hub project.

    Pedestrian Overpass in Hangzhou

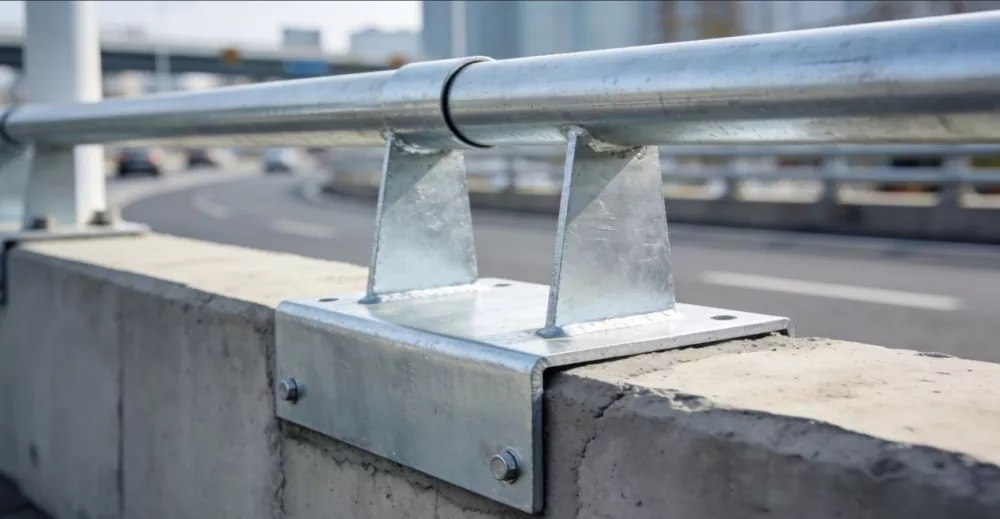

    Hot-dip galvanized embedded plates were deployed for overpass guardrails, improving load transmission efficiency. The plates showed no obvious corrosion in the rainy environment, significantly shortening the construction period and ensuring municipal infrastructure durability.

    Our Industrial Advantages

    Tianjin Shunchen Industrial Co., Ltd., founded in 2014, is headquartered in the Daqiuzhuang Industrial Zone. As a comprehensive industrial chain enterprise, we integrate steel deep processing, hot-dip galvanizing, warehousing, and import/export trade.

    With an annual production capacity exceeding 450,000 tons and an output value of nearly 2 billion yuan, we possess significant advantages in the embedded steel plate field. Relying on full industry chain integration, our base offers sufficient production capacity, ready stock, fast supply response, and controllable costs. As a factory-direct supplier, we provide competitive pricing for bulk orders and customized solutions. Check our ISO 9001 certification for quality assurance.

    Frequently Asked Questions

    What is the typical lead time for bulk orders of embedded steel plates?

    For standard specifications in stock, the lead time is usually 7-15 days. For customized sizes, specific materials (like 316 stainless steel), or special anti-corrosion treatments, the production cycle is typically 20-30 days, depending on the order quantity. We will provide a precise delivery schedule upon order confirmation.

    Can you manufacture plates based on custom drawings?

    Yes, absolutely. We support OEM and ODM services. You can provide CAD drawings (DWG, DXF, STEP) or physical samples. Our CNC cutting and laser drilling technology ensures your custom hole layouts and plate sizes are met with a precision tolerance of ≤±0.2mm.

    How do you ensure the welding quality for heavy-load applications?

    We use advanced automated welding processes with a weld height of ≥8mm and ensure there are no pores or cracks. Every batch undergoes rigorous non-destructive testing (NDT) and flaw detection. Our weld qualification rate is consistently as high as 99.9%, effectively meeting the heavy load and special requirements of industrial plants.

    What surface treatments are recommended for outdoor and coastal projects?

    For general outdoor use, we recommend hot-dip galvanizing (zinc coating thickness ≥80μm) which provides excellent anti-corrosion performance. For coastal environments with high salt fog, we highly recommend using 316 stainless steel material combined with a heavy zinc coating or specialized fluorocarbon spraying to ensure maximum durability.

    Can you provide material certificates and test reports?

    Yes. We provide comprehensive quality documentation with every shipment, including Mill Test Certificates (MTC), mechanical property test reports (bending and shear strength), and salt spray test reports. This ensures smooth customs clearance and meets the strict acceptance requirements of international construction projects.

    Request a Quote for Embedded Steel Plates

    Send us your drawings, required material grade, plate dimensions, and anti-corrosion specifications. Our engineering team will review your project and provide a competitive factory-direct quotation.
