Galvanized Angle Steel

High-quality Galvanized Angle Steel with a cheap price can be wholesaled from our factory called Tianjin Shunchen Industrial Company, which is one of the manufacturers and suppliers in China. The hot-dip galvanized angle steel produced by our factory is a metal structural component made of ordinary carbon structural steel (such as Q235B, Q355B) as the base material, which is formed into right angled equilateral (or non equilateral) steel through hot rolling or cold bending, and then treated by hot-dip galvanizing process. The core feature is the formation of a zinc layer firmly bonded to the substrate on the surface, with the core function of corrosion and rust prevention. It combines the structural support performance of angle steel with the strong corrosion resistance of hot-dip galvanized layer, making it the preferred basic profile for outdoor and humid environments in the field of steel structures.
    From a functional perspective, galvanized angle steel can be used as load-bearing components, supporting frames, and connectors. It withstands tensile, compressive, and bending forces while resisting the erosion of atmospheric, humid, and mildly acidic or alkaline environments. It is widely applied in scenarios requiring structural stability and long-term protection, making it a fundamental profile in the steel structure field.

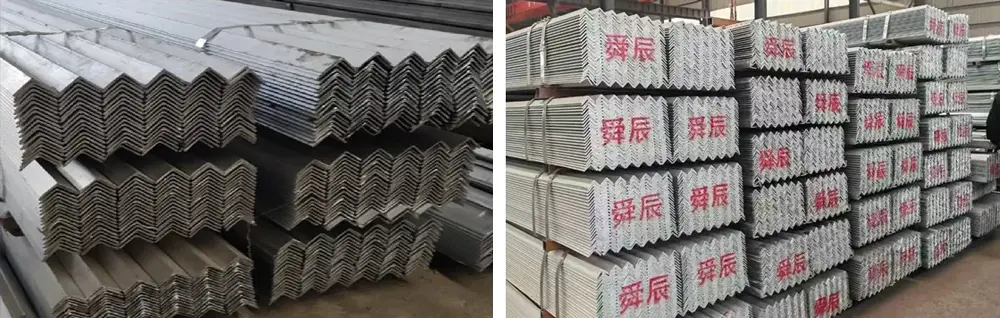

    Hot-dip galvanized angle steel profiles

    Product Details

    Hot-dip galvanized angle steel is a metal structural component made from ordinary carbon structural steel (such as Q235B or Q355B). The base steel is hot-rolled or cold-formed into right-angled equilateral (or unequal) steel, then treated via a high-temperature hot-dip galvanizing process. This process protects the steel substrate from the root, offering dual protection through metallurgical bonding and electrochemical action.

    Galvanized angle steel structure

    Long-Lasting Anti-Corrosion

    The zinc layer thickness can reach over 85 μm, and thicker layers can be customized for heavy-duty or highly corrosive scenarios. In outdoor natural environments, its service life can reach 15–30 years. Even in harsh conditions like coastal or highly humid areas, it provides stable use for over 10 years, far exceeding ordinary galvanized angle steel (3–5 years). This greatly reduces the labor and material costs for later maintenance and replacement.

    Product Advantages

    Excellent Structural Stability & Load-Bearing Capacity

    It fully preserves the cross-sectional mechanical properties of angle steel. The right-angle shape can meet various construction needs, assembled into a stable frame structure via welding or bolted connections. The hot-dip galvanizing process does not affect the mechanical properties of the substrate, ensuring tensile and compressive strength comply with various engineering standards.

    Mature Process & Cost-Effective Alternative

    The production process is mature and stable, with controllable costs. Compared to stainless steel profiles, it has a significant price advantage while its anti-corrosion performance meets the vast majority of outdoor needs. It can also be customized by side length, thickness, length, and zinc layer thickness, suitable for both civil buildings and industrial heavy-duty anti-corrosion projects.

    Low Maintenance & Strong Adhesion

    The surface is smooth and uniform, with strong adhesion of the zinc layer. It is not easily damaged or peeled off during transportation and installation. Daily use only requires simple cleaning to remove floating dust, making it especially suitable for outdoor, high-altitude, and humid scenarios that are difficult to maintain.

    Technical Specifications

    Classification Specific Parameter Details
    Substrate Material Mainstream: Q235B (general load-bearing), Q355B (low-alloy high-strength for heavy-duty/low-temp). Auxiliary: Q195, Q215 (light load/decoration).
    Cross-Sectional Specs Equilateral: 25×25×3 mm to 200×200×24 mm (e.g., 50×50×5, 75×75×6).
    Unequal: 32×20×3 mm to 200×125×18 mm (e.g., 63×40×4, 90×56×5).
    Length: 6m, 9m, 12m standard. Customizable 5–19m fixed length (tolerance ±5mm/m).
    Galvanizing Process High-temperature immersion process. Zinc layer thickness ≥85 μm (customizable >100 μm for high salt spray). No missed plating or peeling. Salt spray resistance test ≥500 hours. Can include passivation/phosphating.
    Mechanical Properties Q235B: Yield ≥235MPa, Tensile 375–500MPa, Elongation ≥26%.
    Q355B: Yield ≥355MPa, Tensile 470–630MPa, Elongation ≥21%. (Performance remains unchanged after galvanizing).

    Application Fields

    Hot-dip galvanized angle steel is widely used across five core areas:

    1

    Construction Engineering

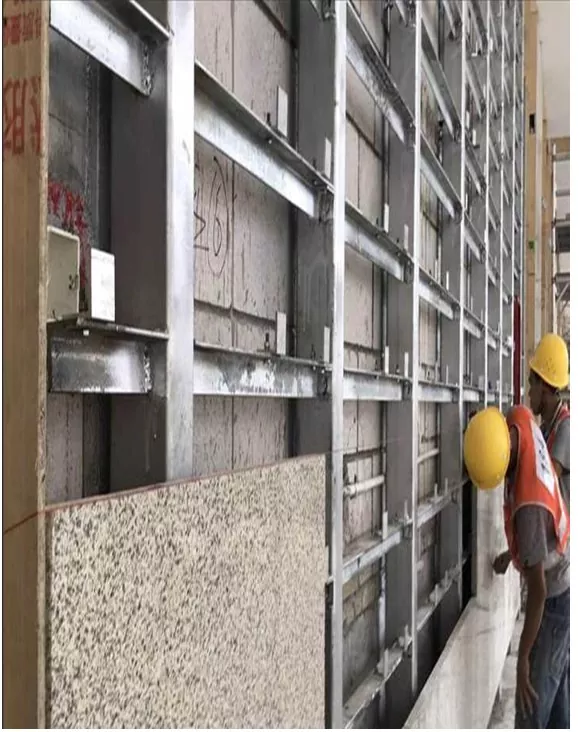

    Used as steel structure supports, curtain wall keels, guardrails, canopy supports, and factory columns. Ideal for outdoor, coastal, and humid underground environments. Explore our steel structure materials.

    2

    Power & Communication

    Used for transmission towers, signal towers, transformer brackets, and cable trays, resisting outdoor wind, rain, and atmospheric corrosion.

    3

    Transportation Facilities

    Used for highway guardrails, road barriers, bridge components, and bus shelter frames, resisting complex climates and vehicle exhaust. See our galvanized grating.

    4

    Mechanical Manufacturing

    Serving as equipment support frames, bases, protective barriers, and storage rack columns, balancing structural stability with mild corrosion resistance. View our standard angle steel.

    5

    Chemical & Municipal Engineering

    Used for chemical plant supports, sewage treatment equipment frames, street lamp pole bases, and water supply/drainage pipe supports, resisting mild acid-base and industrial waste gas corrosion.

    Why Choose Shunchen?

    Choosing Shunchen hot-dip galvanized angle steel guarantees quality throughout the entire supply chain. We use national standard substrates and strictly follow hot-dip galvanizing process standards. Each batch undergoes testing for zinc layer thickness, adhesion, and mechanical properties, accompanied by testing reports. We offer strong customization capabilities for cross-sections, lengths, and zinc layer thicknesses, with short delivery cycles to keep your project on schedule.

    30+ Years Production Experience
    236+ Customized Specs
    Zero Quality Accidents
    ISO · CE Certifications

    Manufacturing Excellence

    Shunchen has over 30 years of production experience and holds ISO 9000 and EU CE certifications. Based on a full industry chain layout, combined with 12 refined processes and a 3-layer full inspection mechanism, we ensure zero quality and safety accidents annually. Up to now, we have achieved zero defaults on orders for 12 years.

    Shunchen ISO 9000 quality management certificate Shunchen EU CE certification

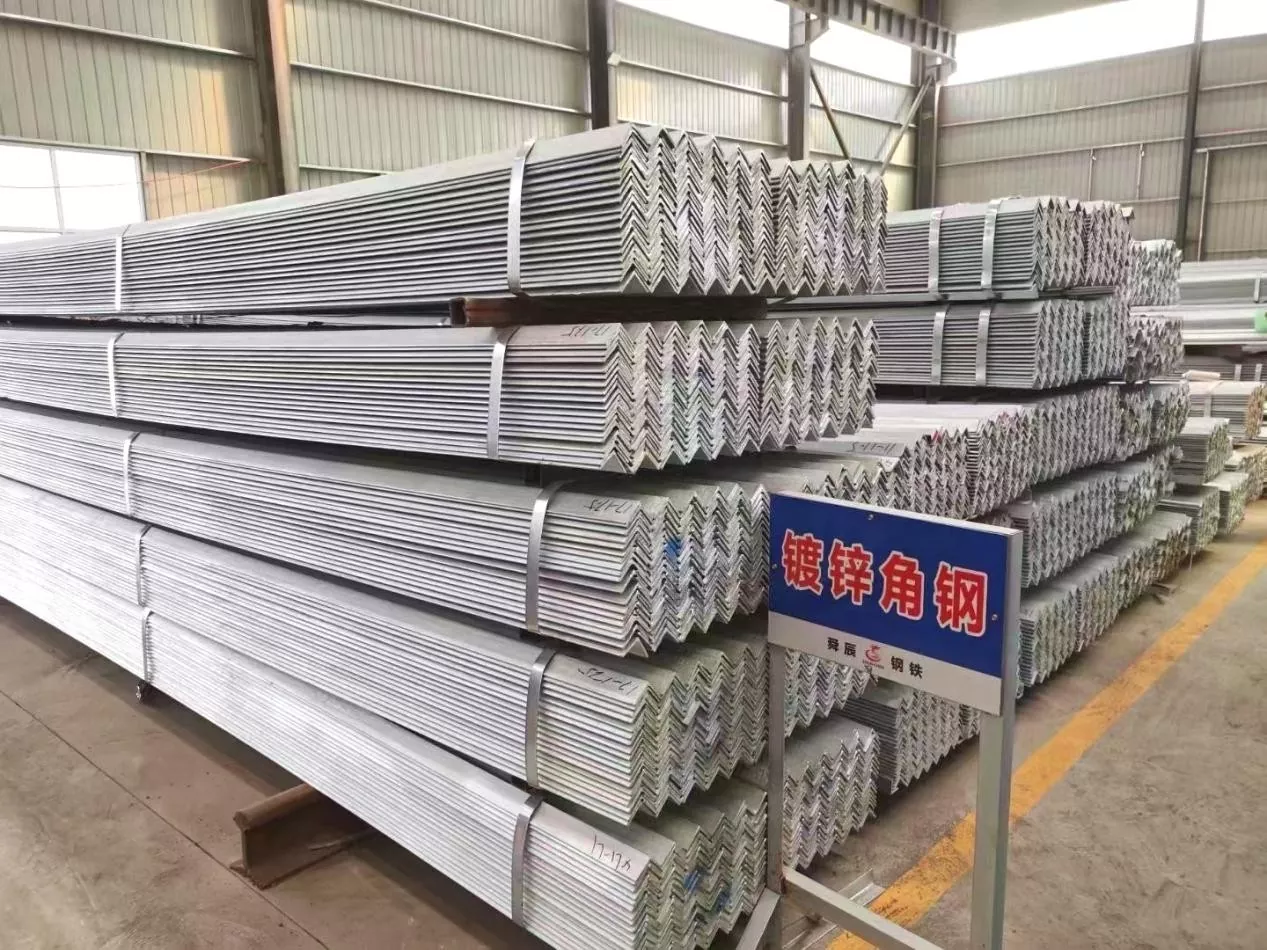

    Galvanized angle steel production workshop Advanced galvanizing production line Galvanized angle steel warehouse Galvanized angle steel export packaging

    Frequently Asked Questions

    What is hot-dip galvanized angle steel?

    It is a structural steel component formed into an L-shape (equilateral or unequal) and then immersed in molten zinc. This creates a metallurgically bonded zinc coating that protects the underlying steel from corrosion, making it ideal for outdoor and harsh environments.

    What is the typical service life of your galvanized angle steel?

    In standard outdoor environments, the service life is typically 15 to 30 years. Even in highly corrosive environments like coastal areas, it can last over 10 years, significantly outperforming standard painted or cold-galvanized steel.

    Can you customize the zinc coating thickness?

    Yes. The standard zinc layer thickness is ≥85 μm. For heavy-duty or high salt-spray environments, we can customize the thickness to over 100 μm to meet specific corrosion resistance requirements.

    Do you supply unequal angle steel?

    Yes, we provide both equilateral angle steel (ranging from 25×25×3 mm to 200×200×24 mm) and unequal angle steel (ranging from 32×20×3 mm to 200×125×18 mm). We can also cut to your specific fixed lengths.

    Request Hot-Dip Galvanized Angle Steel

    Contact our technical team with your required dimensions, steel grade, and zinc coating thickness. We will provide a competitive quotation and arrange fast delivery for your project.
